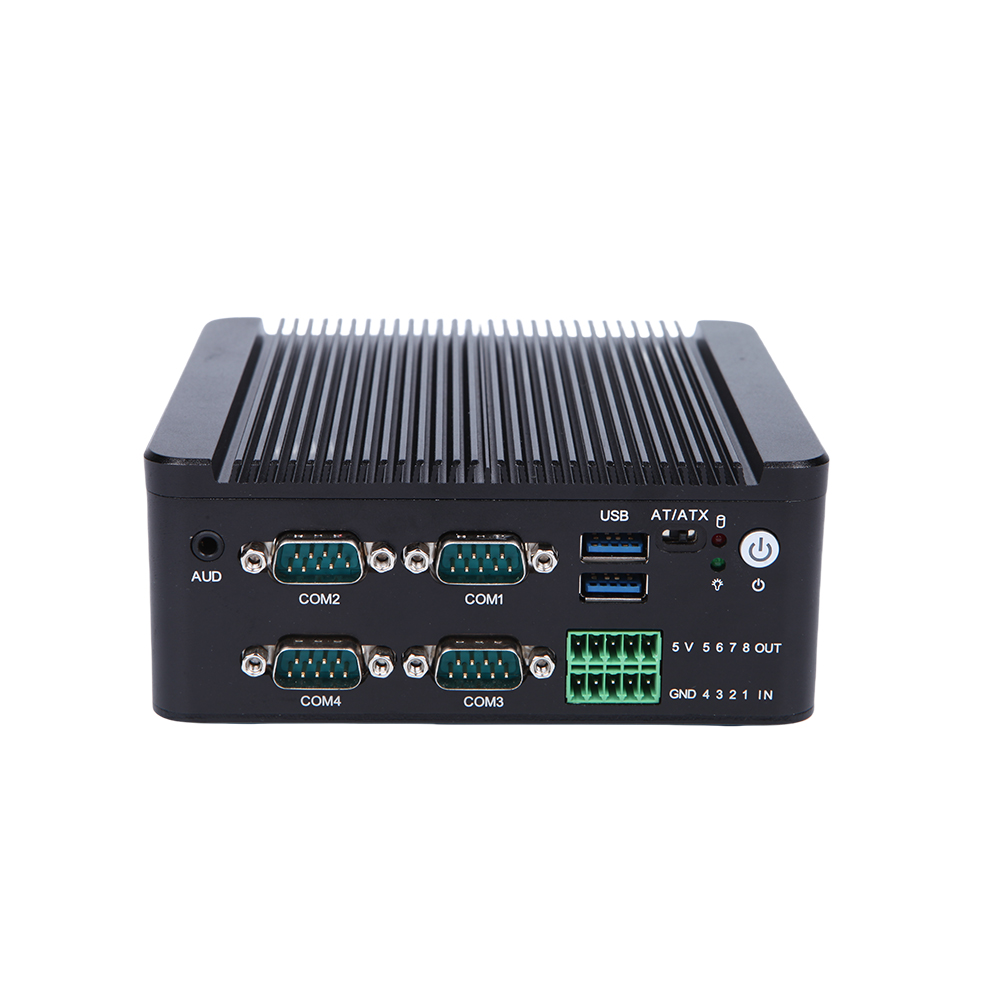

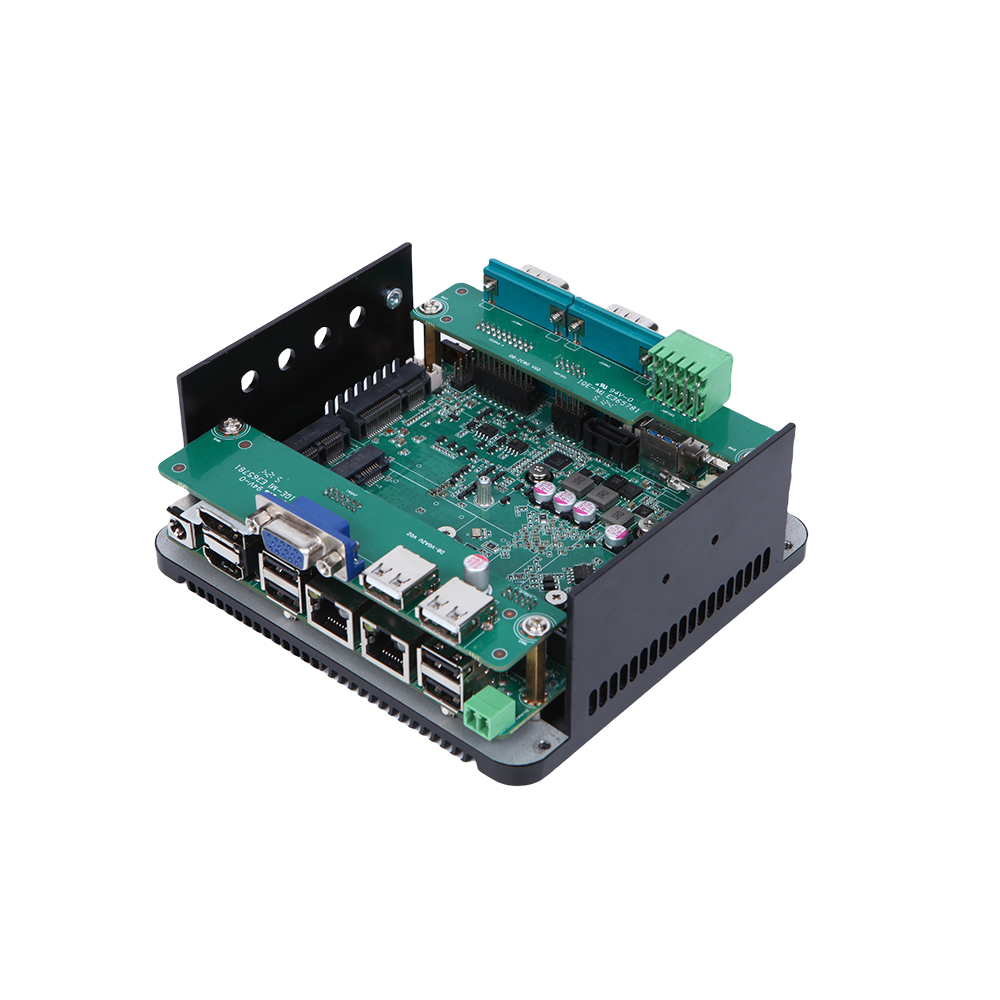

◆On-board Intel BayTrail series processor, J1900
◆1 x DDR3L SO-DIMM, maximum 8GB
◆ 1 x HDMI, 1 x DP, 1 x VGA
◆ Dual network RTL8111H, 4 x COM
◆2 x MiniPCIe, 8bit GPIO, remote switch
◆DC 12-19V;
◆Size: 125x136x55 mm
◆ No fan cooling, small size, low power consumption, multi-functionality
Materia | Aluminum profile, fanless cooling |
Color | Black |
Processor System | Built-in Intel BayTrail series processor, J1900, with TDP of 10W |
EFI BIOS | |
Memory | 1 x DDR3L SO-DIMM, with a maximum capacity of 8GB |
Storage | 1 x mSATA |
1 x 2.5-inch hard drive slot | |
Display | 1 x HDMI1.4,1080P |
1 x DP1.2,1080P | |
1 x VGA,1080P | |

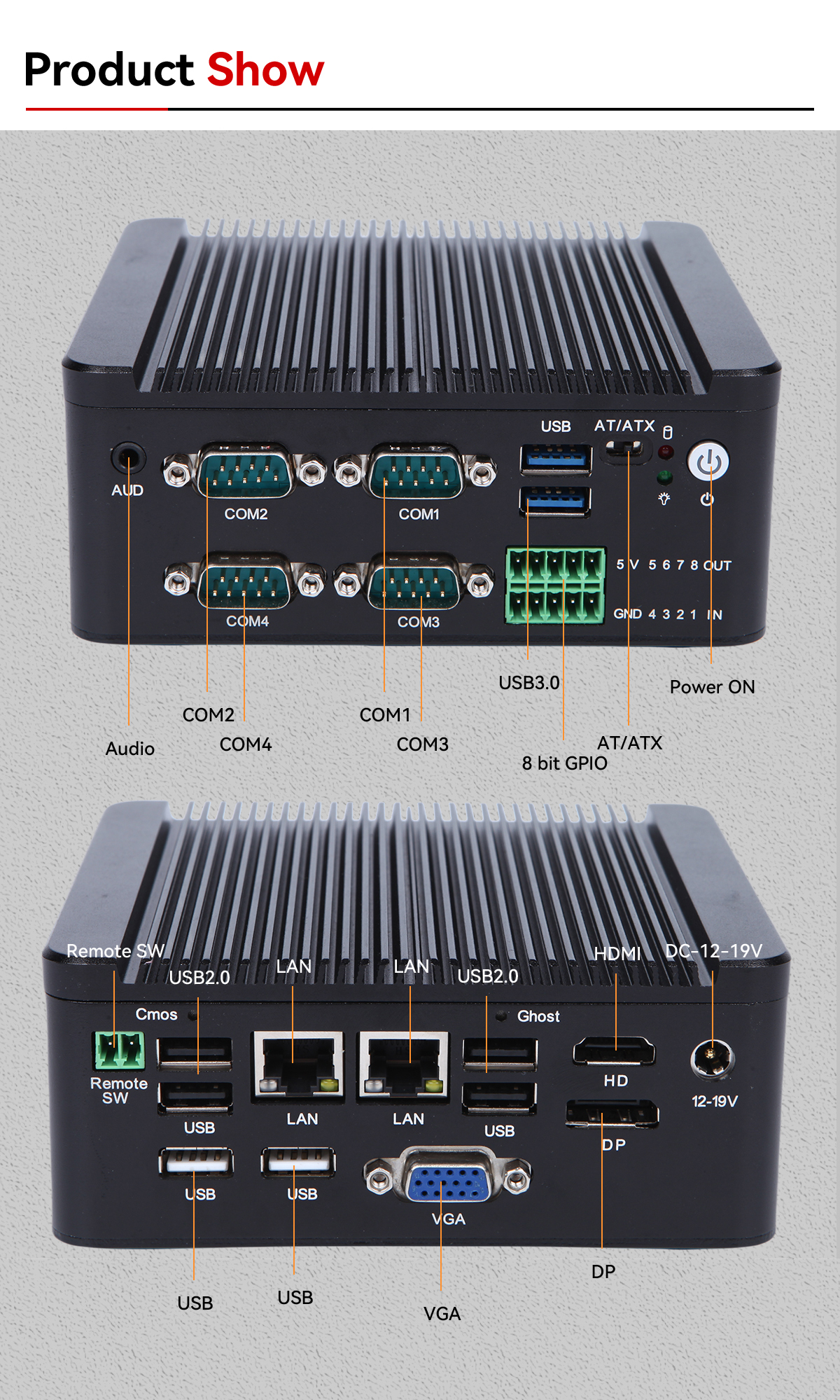

External I/O interface | DC JACK、HDMI、DP、VGA、8 x USB、2 x LAN |
2 x DB9 (COM1/2, jumper selection: RS232 as default / 485) | |
| CMOS, one-click restoration, 4 antenna holes | |
Two-in-one Audio, power-on button, AT/ATX switch (default AT), LED (POWER, HDD), remote control switch | |
Built-in functions | 1 x MiniPCIe (PCIe + USB2.0 protocol, supporting WIFI/BT module) |
1 x MiniPCIe (USB2.0 protocol, supporting 4G module), Nano SIM card | |
Power input | DC 12V, 60W or more |
Operating environment | Operating temperature: 0℃ ~ +60℃; Operating humidity: 5% ~ 90% |
Storage temperature: -15℃ ~ +75℃; Storage humidity: 5% ~ 90% | |
Operating System Support | Windows10,Windows11,Linux |
Body Size | 125x136x55mm |
Packaging Size | Single unit packaging size: 173x207x105mm |
Weight | The gross weight of a single unit is approximately 1200g (excluding packaging and adapter) |
Fixing holes | 70x70mm spacing VESA holes; 35mm wide track snap-in holes, 20mm hole spacing (excluding the fixed bracket) |
