CK-M01

◆ On-board Intel BayTrail series processor, J1900

◆ 1 x DDR3L SO-DIMM, maximum 8GB

◆ 1 x HDMI, 1 x DP

◆ Dual network RTL8111H, 2 x COM

◆ 2 x MiniPCIe, remote switch

◆DC 12-19V;

◆ Size: 125x136x40 mm

◆ No fan cooling, small size, low power consumption, multi-functionality

PRODUCT DESCRIPTION:

Materia	Aluminum profile, fanless cooling
Color	Black
Processor System	Built-in Intel BayTrail series processor, J1900, with TDP of 10W
Processor System	EFI BIOS
Memory	1 x DDR3L SO-DIMM, with a maximum capacity of 8GB
Storage	1 x mSATA
Storage	1 x 2.5-inch hard drive slot
Display	1 x HDMI1.4,1080P
Display	1 x DP1.2,1080P

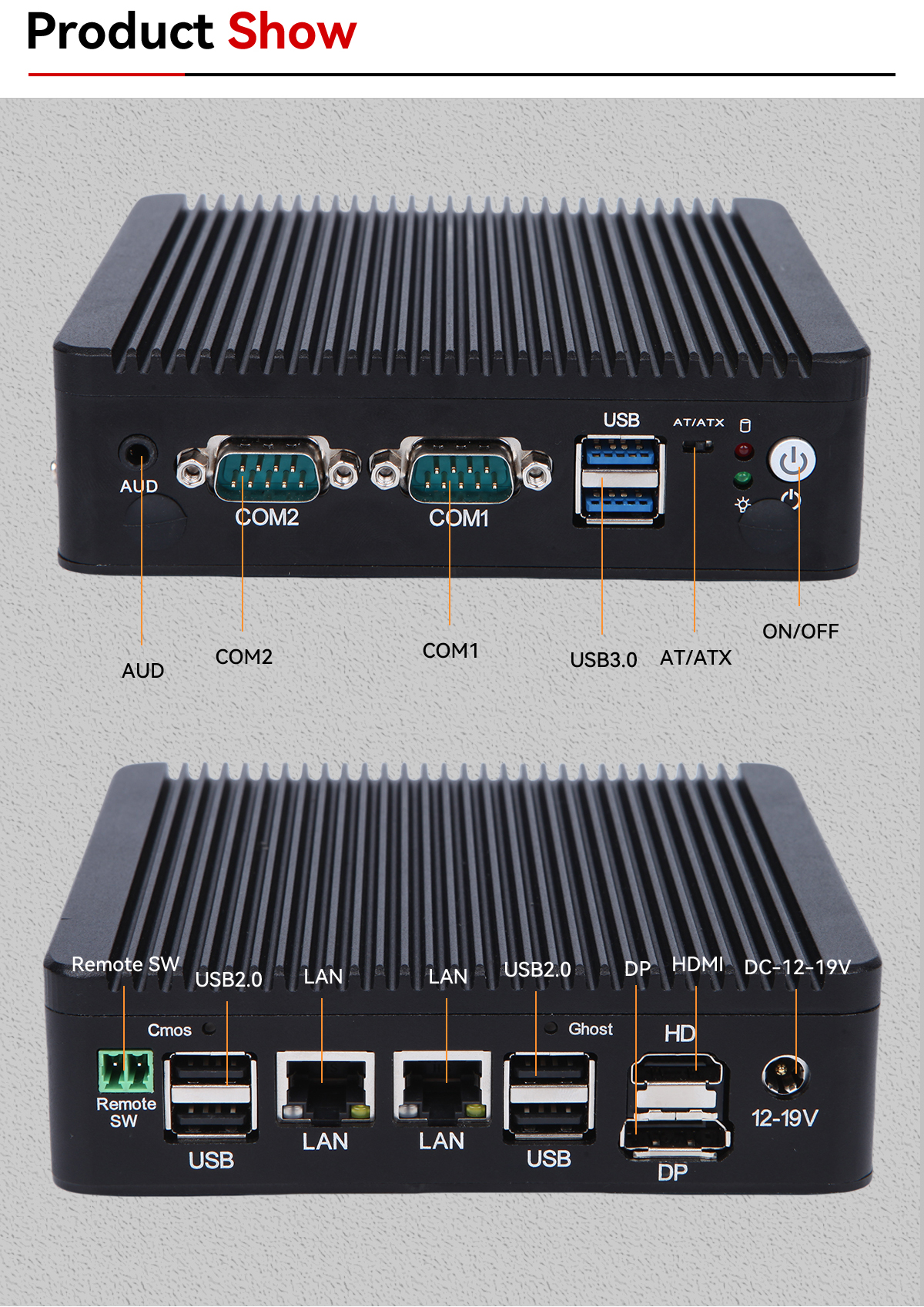

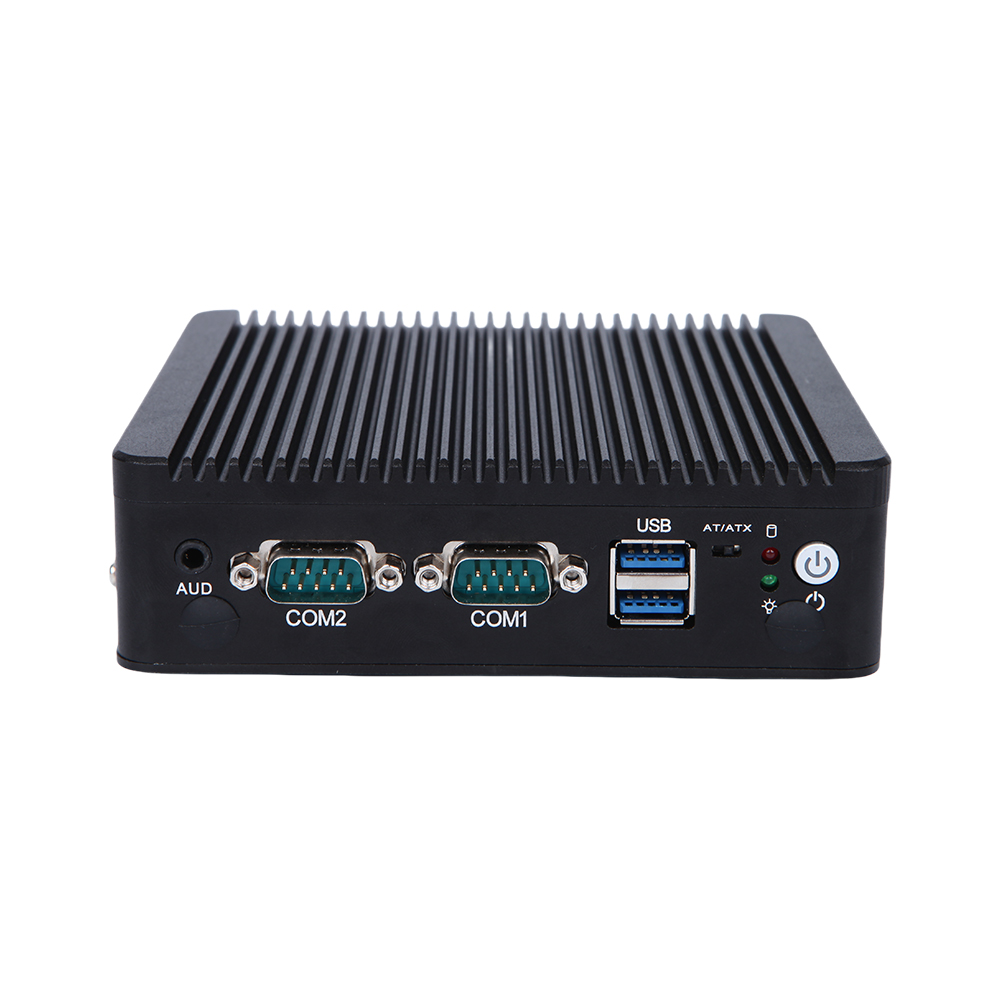

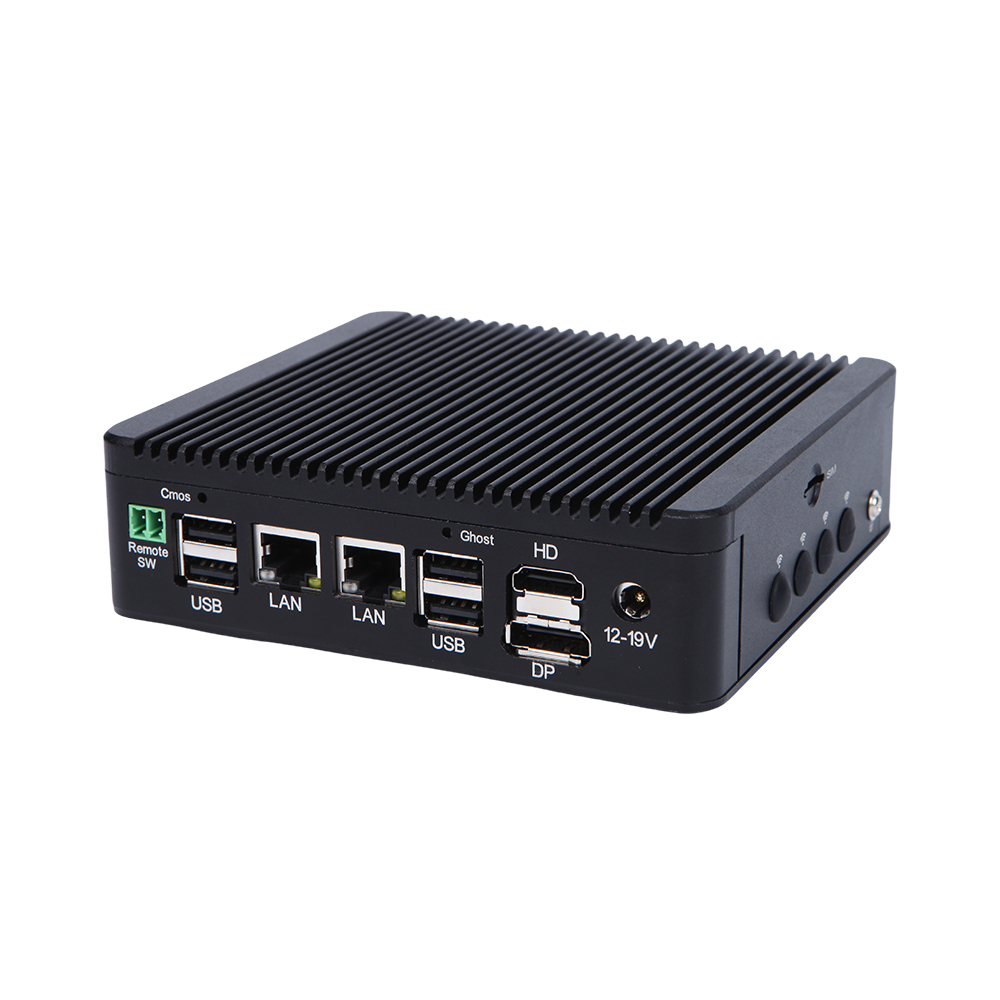

External I/O interface	DC JACK、HDMI、DP、6 x USB、2 x LAN
	2 x DB9 (COM1/2, jumper selection: RS232 as default / 485)
	RJ45, single or dual network options available
	Two-in-one Audio, power-on button, AT/ATX switch (default AT), LED (POWER, HDD), remote control switch
Built-in functions	1 x MiniPCIe (PCIe + USB2.0 protocol, supporting WIFI/BT module)
Built-in functions	1 x MiniPCIe (USB2.0 protocol, supporting 4G module), Nano SIM card
Power input	DC 12V, 60W or more
Operating environment	Operating temperature: 0℃ ~ +60℃; Operating humidity: 5% ~ 90%
Operating environment	Storage temperature: -15℃ ~ +75℃; Storage humidity: 5% ~ 90%
Operating system support	Windows10,Windows11,Linux
Body size	125x136x40mm
Packaging size	Single unit packaging size: 173x207x105mm
Weight	The gross weight of a single unit is approximately 1100g (excluding packaging and adapter)
Fixing holes	70x70mm spacing VESA holes; 35mm wide track snap-in holes, 20mm hole spacing (excluding the fixed bracket)
