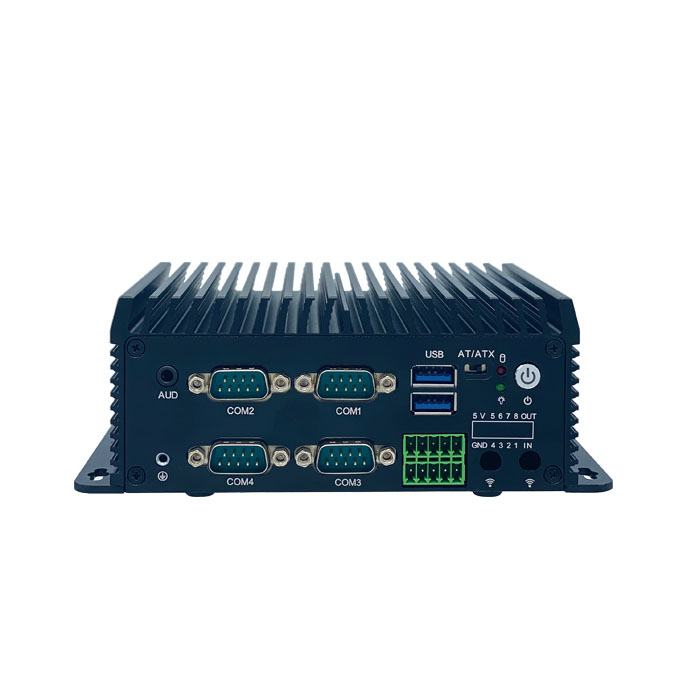

Home > Products > Mini PC > NANO Mini Pc
◆Onboard Intel® Skylake-U/Kaby Lake-U/Kaby Lake R series processors
◆ 1 x DDR3L SO-DIMM, up to a total of 16GB
◆ HDMI + DP
◆Dual network RTL8111H, 2 x COM
◆ E-Key, B-Key, remote control
◆ DC 12-19V;
◆ Dimensions: 141x125x57 mm
◆ Fanless cooling, small size, low power consumption, multi-functionality
| Materia | Aluminum profile, fanless cooling |
Color | Black |
Processor system | Built-in Intel® Skylake-U / Kaby lake-U / Kaby lake R series processors, with TDP of 15W |
EFI BIOS | |
Memory | 1 x DDR3L SO-DIMM, with a maximum capacity of 16GB |
Storage | 1 x M.2 2280 (PCIe/SATA3.0 Adaptive) |
1 x 2.5-inch hard drive slot | |
Display | HDMI DP VGA |

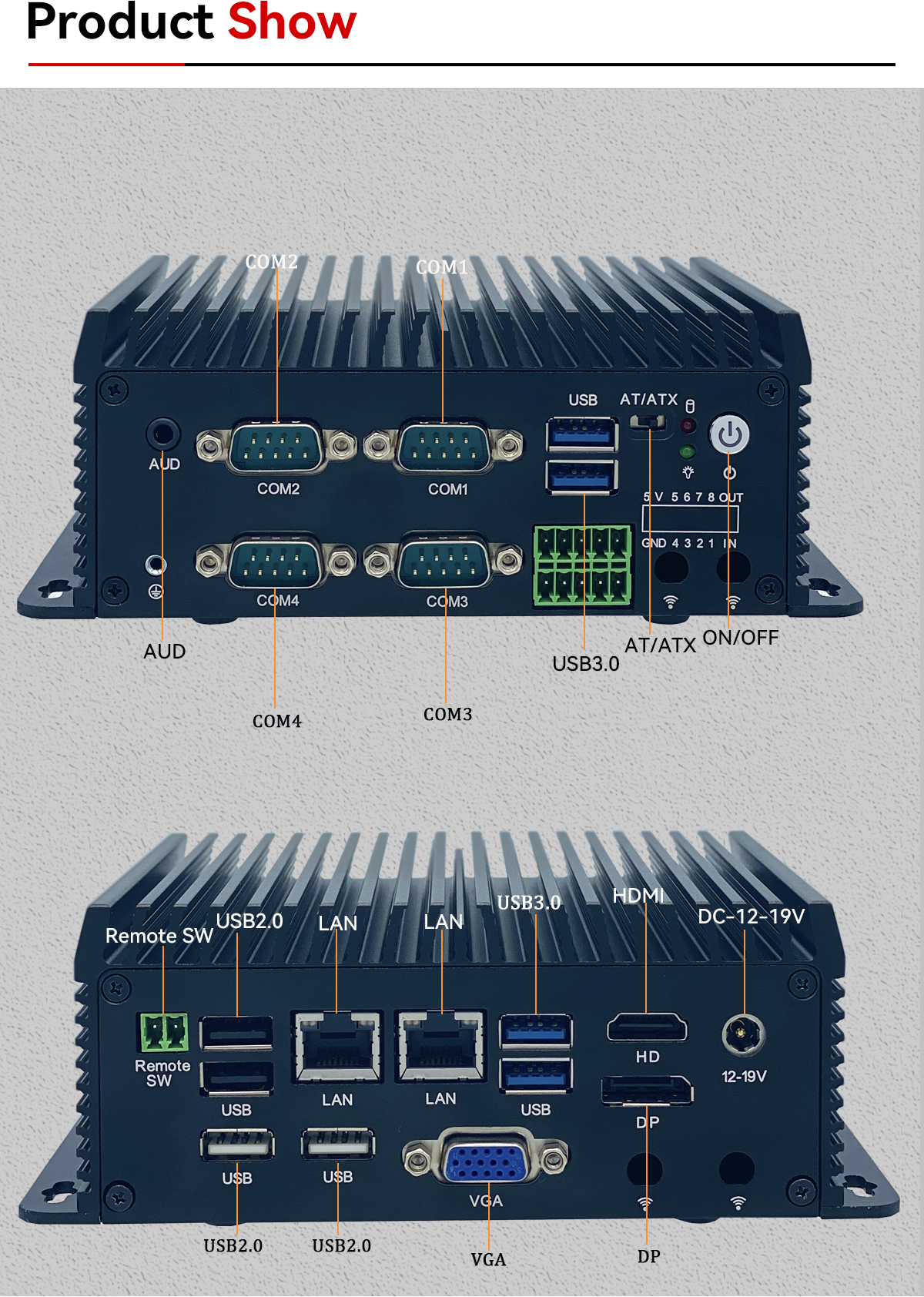

External I/O interface | DC JACK、DP、HDMI、6 x USB(4*USB3.0+2*USB2.0)、2 x LAN |
2 x DB9 (COM1 defaults to RS485, COM2 is RS232) | |
| 2 x Antenna holes | |
Two-in-one Audio, MIC (red), power-on button, AT/ATX switch (default AT), LED (POWER, HDD), remote control switch | |
Built-in functions | 1 x E-Key (PCIe + USB2.0 protocol, supporting WIFI/BT module) |
1 x B-Key (with USB 2.0 protocol and 4G module support), Nano SIM card | |
Power input | DC 12V, 60W or more |
Operating environment | Operating temperature: 0℃ ~ +60℃; Operating humidity: 5% ~ 90% |
Storage Temperature: -15℃ ~ +75℃; Storage humidity: 5% ~ 90% | |
Operating System Support | Windows10,Windows11,Linux |
Body size | 141x125x57mm |
Packaging size | Single unit packaging size: 173x207x105mm |
Weight | The gross weight of a single unit is approximately 832 grams (excluding packaging and adapter) |
Fixing holes | 71x71mm spacing VESA holes (without VESA brackets) |
Choosable | Left and right earpieces |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
