Home > Products > Mini PC > NANO Mini Pc
◆On-board Intel AlderLake-N series processor
◆1 x DDR4 SO-DIMM, up to a total of 16GB
◆2 x HDMI
◆Dual network RTL8111H, 2 x COM
◆E-Key, B-Key, remote control
◆DC 12-19V;
◆Dimensions: 141x125x57 mm
◆ Fanless cooling, small size, low power consumption, multi-functionality
Materia | Aluminum profile, fanless cooling |
Color | Black |
Processor system | Onboard Intel AlderLake-N series processor, with TDP of 15W |
EFI BIOS | |
Memory | 1 x DDR4 SO-DIMM, with a maximum capacity of 16GB |
Storage | 1 x M.2 2280 (PCIe/SATA3.0 Adaptive) |
1 x 2.5-inch hard drive slot | |
Display | 2 x HDMI1.4,1080P |

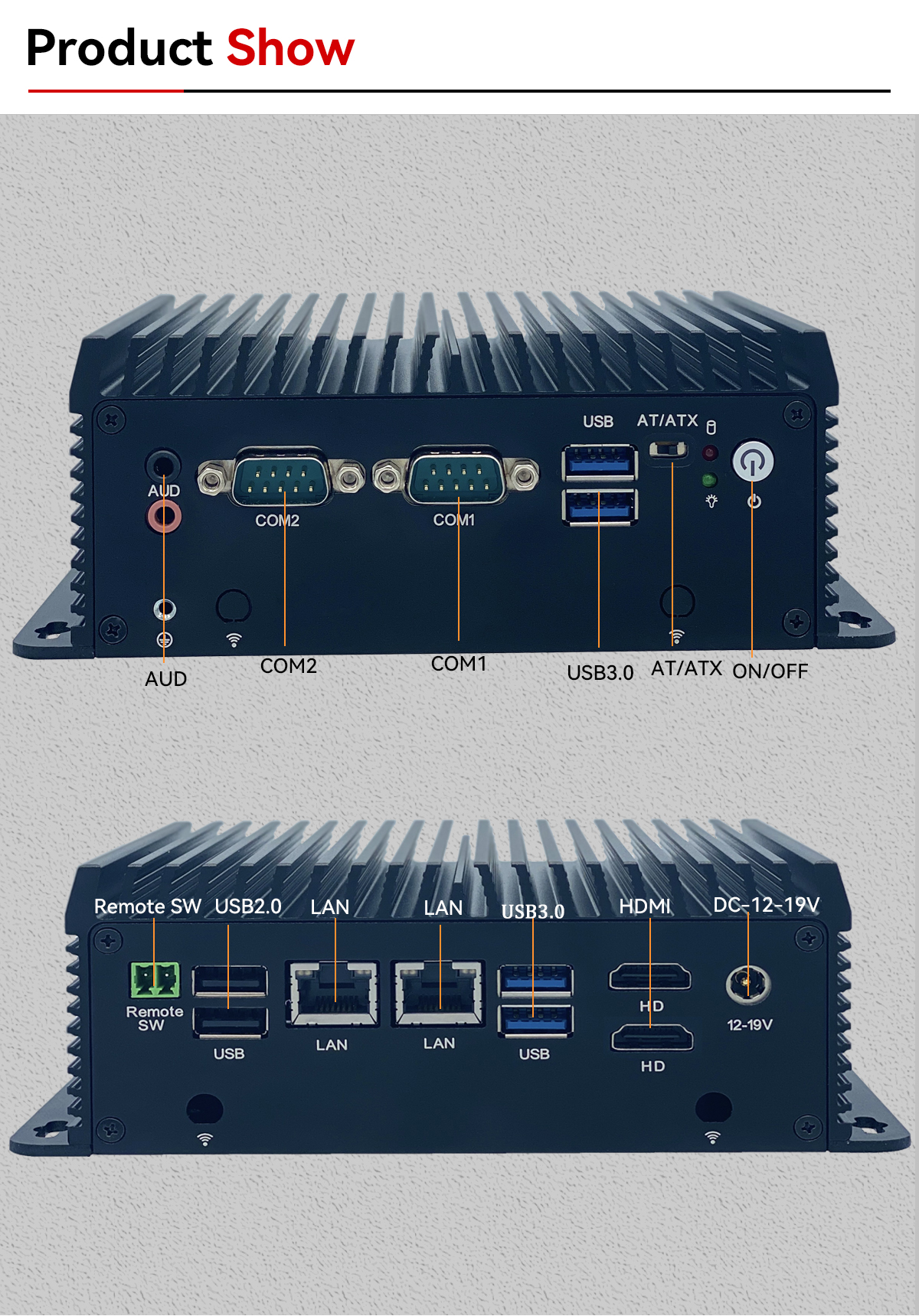

External I/O interface | DC JACK、2 x HDMI、6 x USB、2 x LAN |
COM1 is set to RS485 by default, while COM2 is RS232 | |
| 2 x Antenna holes | |
Two-in-one Audio, MIC (red), power-on button, AT/ATX switch (default AT), LED (POWER, HDD), remote control switch | |
Built-in functions | 1 x E-Key (PCIe + USB2.0 protocol, supporting WIFI/BT module) |
1 x B-Key (with USB 2.0 protocol and 4G module support), Nano SIM card | |
Power input | DC 12V, 60W or more |
Operating environment | Operating temperature: 0℃ ~ +60℃; Operating humidity: 5% ~ 90% |
Storage temperature: -15℃ ~ +75℃; Storage humidity: 5% ~ 90% | |
Operating system support | Windows10,Windows11,Linux |
Body size | 141x125x57mm |
Packaging size | Single unit packaging size: 173x207x105mm |
Weight | The gross weight of a single unit is approximately 832 grams (excluding packaging and adapter) |
Fixing holes | 70x70mm spacing VESA holes (without VESA brackets) |
