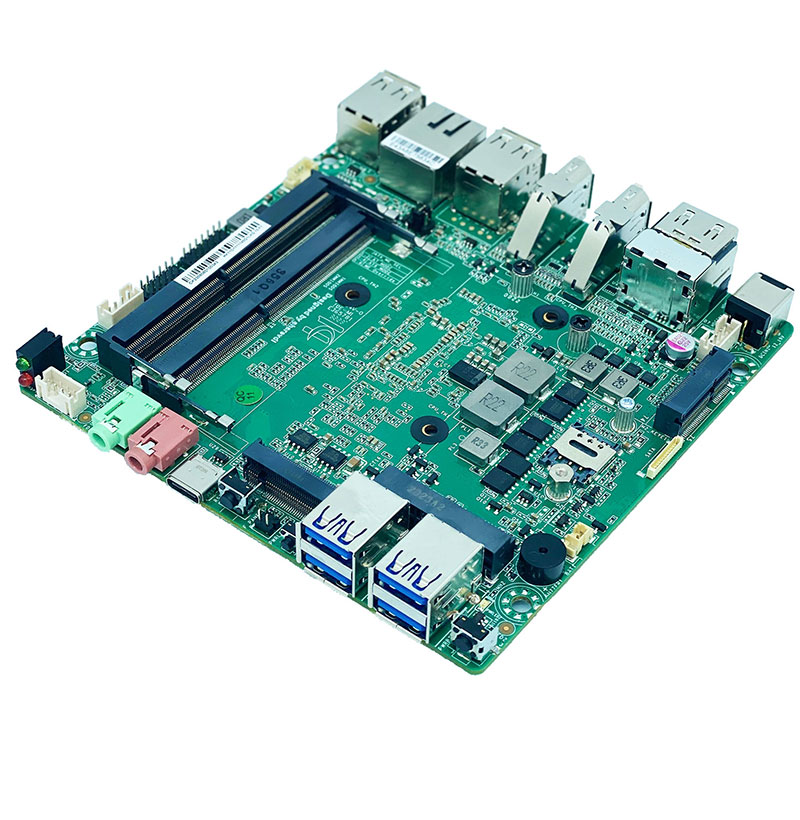

processor：Intel® 11th Tiger Lake i7/i5/i3 FCBGA1449 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 3200MHz Max 64GB
Display output：2*HDMI、2*DP (Support 4 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3.0 and PCIe Gen4 x4 for SSD)
USB:4*USB 3.2，5*USB 2.0，1*Type-C USB
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, support WiFi6）
Expansion slot：1*Mini PCIe (Supports Wifi+Bluetooth extension module ) 1*SIM card slot
| General | |

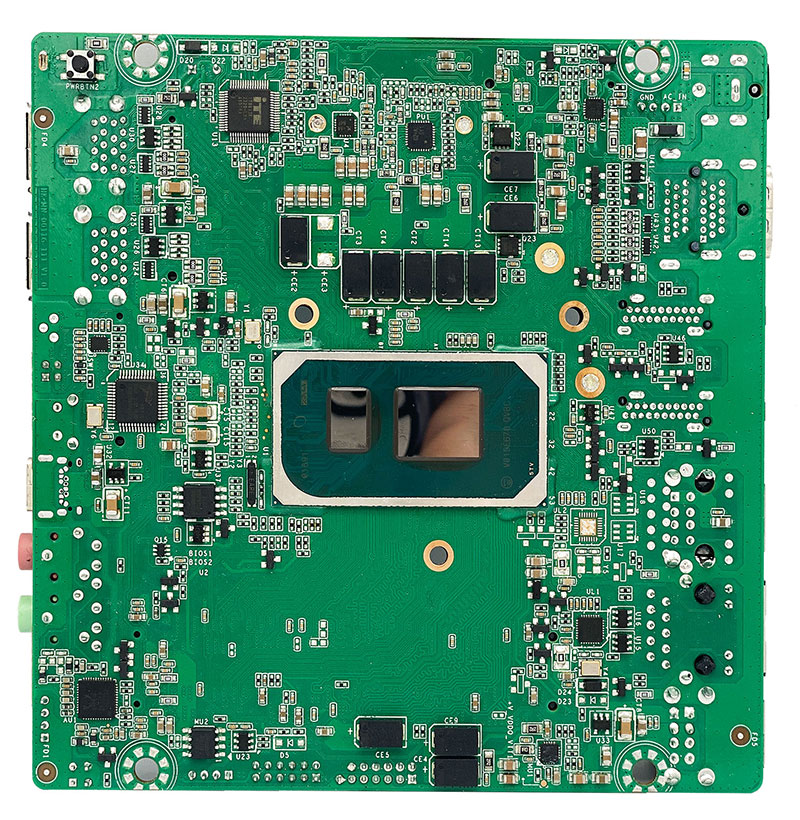

| CPU | Intel® 11th Tiger Lake i7/i5/i3 FCBGA1449 Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 3200MHz Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3.0 and PCIe Gen4 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, support WiFi6） 1*Mini PCIe (Supports Wifi+Bluetooth extension module ) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |

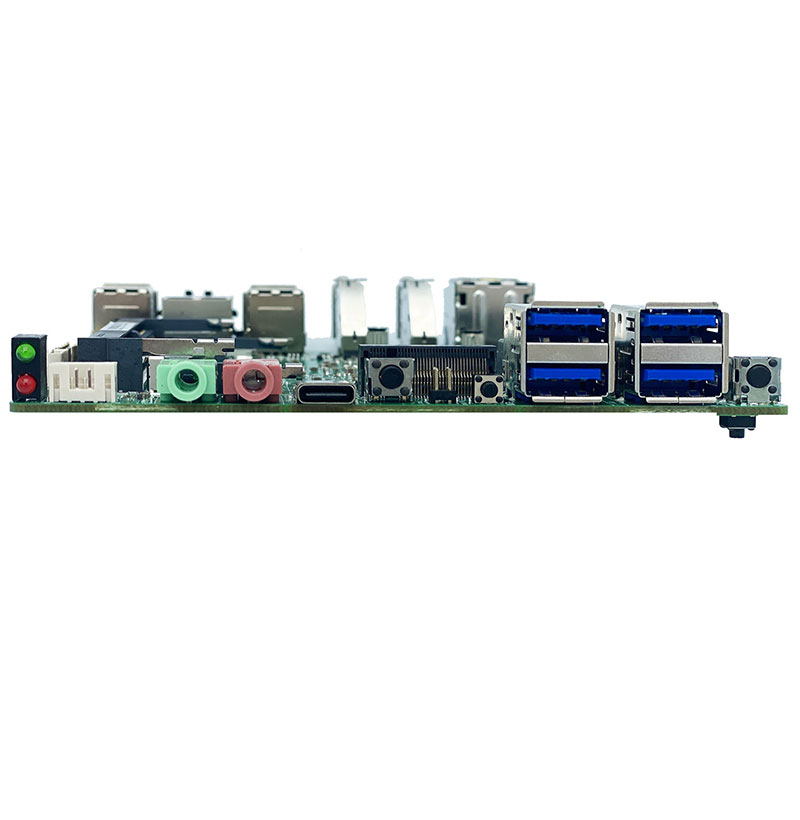

| USB | 4*USB 3.2，5*USB 2.0，1*Type-C USB |
| Audio | Onboard audio decoding controller ALC269 (SPK support 2.2 W @ 4 Ω Max) |
| Others | 1*HDCIN Header 1*C_FAN Header 1*JATX Header 1*CTPM Header 1*JESPI1 Header 1*R_USB3 Header （Extensible 1*USB2.0） 1*SPEAKER Header 1*F_PANEL Header 1*SATA3.0 interface |
| Display | |

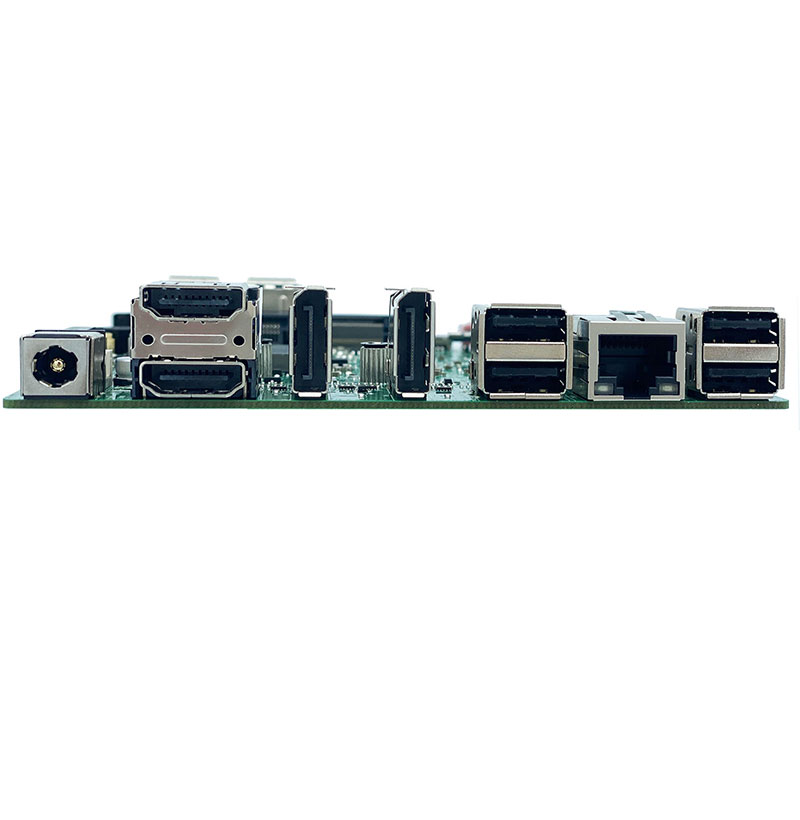

| Display Interface | 2*HDMI、2*DP (Support 4 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 121mmX121mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
