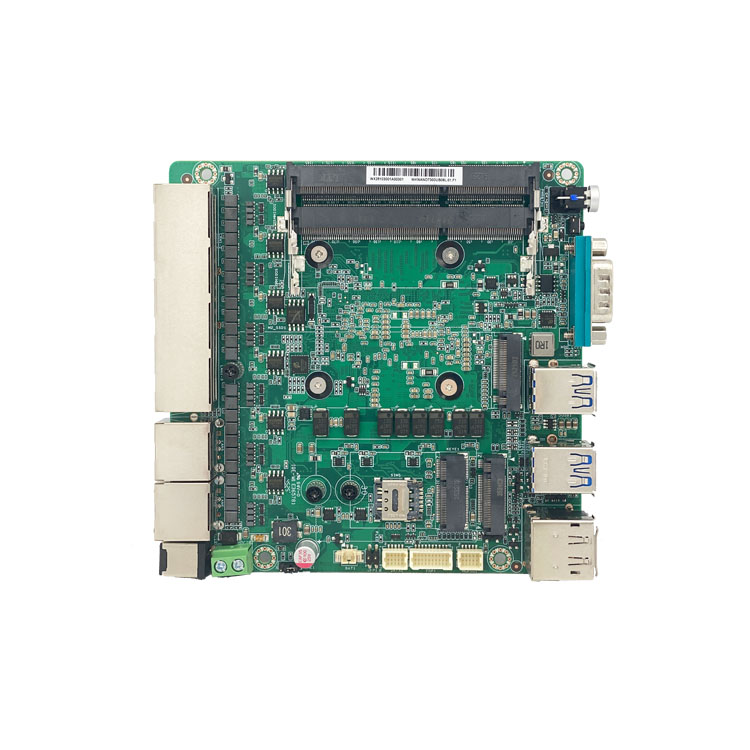

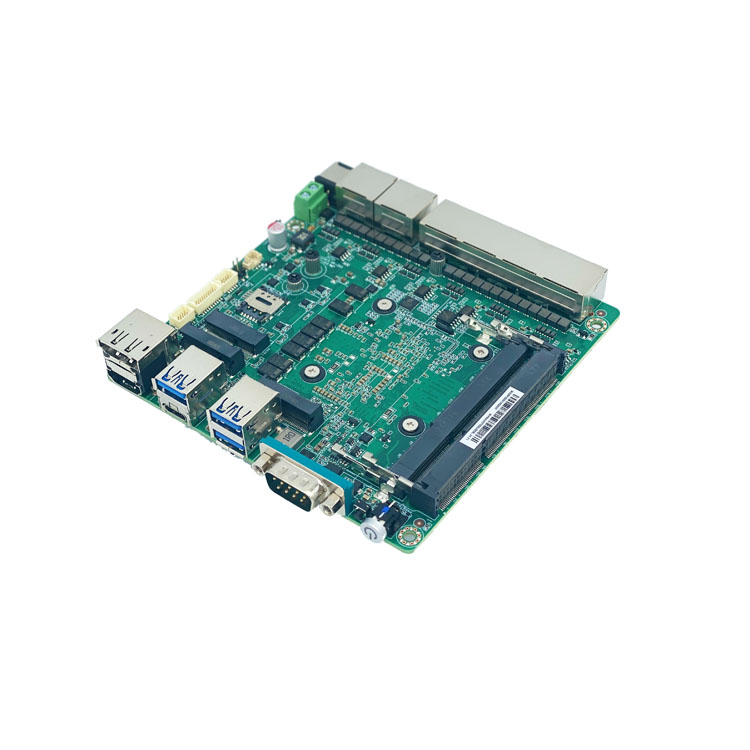

◆Intel® Kaby Lake i3-7167U Processor, dual-core with four threads, 2.80GHz. Intel® Iris® Plus Graphics 650
◆2*SO-DIMM DDR3L 1600 MHz Max32GB
◆Supports HDMI, DP, and EDP1 displays. Can support synchronous/asynchronous output of triple displays.
◆Built-in 6 x Intel i226-V network card
◆Support 3*USB3.0(5Gbit/s),1*Type-C USB 2.0(480Mb/s), 1*SATA3.0
◆1*M.2 Key E (2230mm,Support Wifi+Bluetooth ）
◆1*M.2 Key B (3042/52mm,Support 4G/5G extend) 1*Nano SIM
◆1*M.2 Key M (2280mm,Support PCIe X4&SATA3.0 self-adaption)
◆DC 12-19V，60W
| General | |
| CPU | Intel® Kaby Lake i3-7167U Processor, dual-core, quad-threaded, 2.80GHz |
| Chipset | Intel® SOC |
| Display Chip | Intel® Iris® Plus Graphics 650 |
| Display Output | HDMI、DP、EDP1 |
| Strong support | Supports synchronous/asynchronous output for four displays |
| USB | 3*USB3.0(5Gbit/s),1*Type-C USB 2.0(480Mb/s) |
| Memory | 2*SO-DIMM DDR3L 1600MHz Max 32GB |
| Network Card | Built-in 6 x Intel i226-V network card |
| storage | 1 * SATA 3.0 interface |
| 1 * M.2 Key M (2280mm, supporting PCIe X4 & SATA 3.0 adaptive) | |
| expansion slot | 1 * M.2 Key E (2230mm, supports Wifi + Bluetooth, supports WiFi 6 and CNVI) |
| 1 * M.2 Key B (3042/52mm, supports 4G/5G expansion) 1 * Nano SIM | |
| I/O chip | IT8613E |
| BIOS | AMI BIOS |
| Power Supply | DC 12-19V，60W |
| Environment | Operation: 0 - 60℃; Storage: -15℃ - 75℃ |
| 5% - 95% relative humidity, no condensatio | |
| Motherboard Size | 120mm*120mm |
| Posterior I/O interface | 6*LAN interfaces (LAN5 and 2*USB2.0 ports, LAN6 and 2*USB2.0 ports) |
| Front I/O interface c | 1* PWR_BTN1 button 1* RST1 button ( (short press for restart, long press for CLR-CMOS) ) 1*DB9 COM 3 * USB 3.0 interface 1 * Type-C interface 1 * HDMI interface 1 * DP interface 1 * ATX1 (Power-on Self-Test switch) |
| Internal I/O connector | |
| 1* PWR_BTN1 button 1* RST1 button ( (short press for restart, long press for CLR-CMOS) ) 1*DB9 COM 3 * USB 3.0 interface 1 * Type-C interface 1 * HDMI interface 1 * DP interface 1 * ATX1 (Power-on Self-Test switch) | |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
