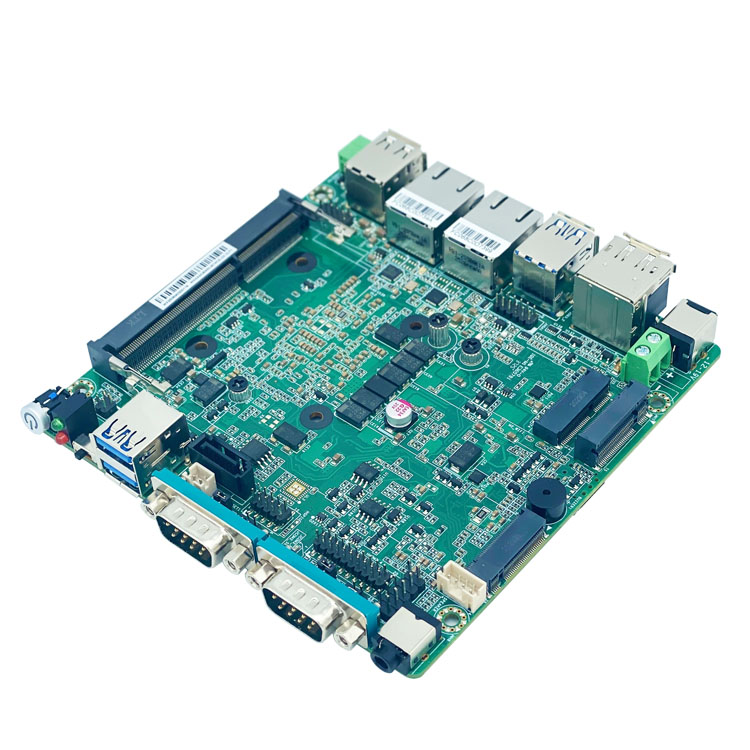

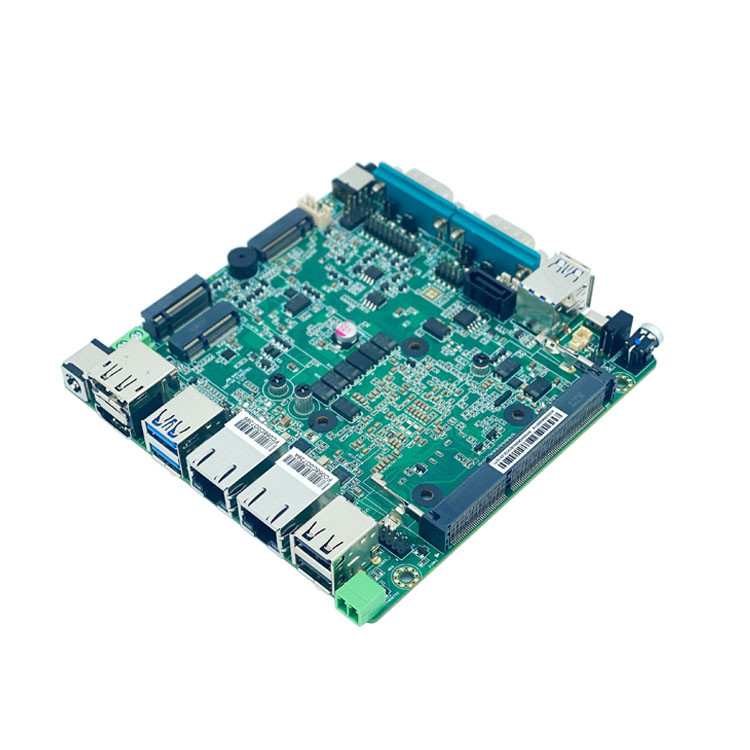

WKNANO-ADLUB0-4L4P

Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor

Display Chip

Intel® UHD Graphics

1*HDMI、1*DP、1*Type-C、1*EDP

Strong support

Supports synchronous/asynchronous output for four displays

2*SO-DIMM DDR5  4800MHz  Max 64GB

Built-in 4 x Intel i226-V network cards, supporting 4 network ports and 4 POE functions

storage

1 * SATA 3.0 interface

1 * M.2 with Key M (2280mm, supporting SATA 3.0 & PCIe X4 adaptive

expansion slot

1 * M.2 Key E (2230mm, supports Wifi + Bluetooth, supports WiFi 6 and CNVI)

1 * M.2 Key B (3042/52mm, supports 4G/5G expansion) 1 * Nano SI

BIOS

IT8613E

I/O chip

AMI  BIOS

Power Supply

Supports 12V @ 60W power adapter for power supply; (Optional POE power supply is available, requires 12V @ 90W power adapter)

Environment

Operation: 0 - 60℃; Storage: -15℃ - 75℃

5% - 95% relative humidity, no condensatio

1*DC interface

4*USB 2.0 interfaces

4*LAN interfaces (supporting 4 network ports and 4 POE)

1*2PIN Header

1*C_FAN Header

1*F_USB1 Header （Extensible 2*USB2.0）

1*JVGA Header

1*F_AUDIO Header

1*SPEAKER Header

2*COM Header

1*HGPIO Header

1*SATA interface

1*SATA_PWR Header

1*F_PANEL Header

1*JFP1 pin

1*SATA 3.0 interface

1*EDP1 pin

1*HGIO pin

1*CFAN1 pin
