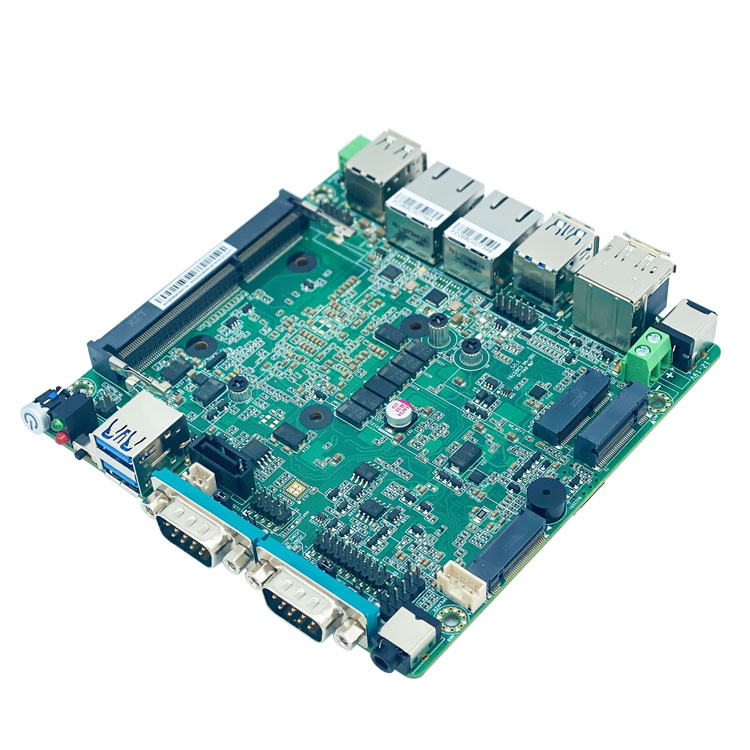

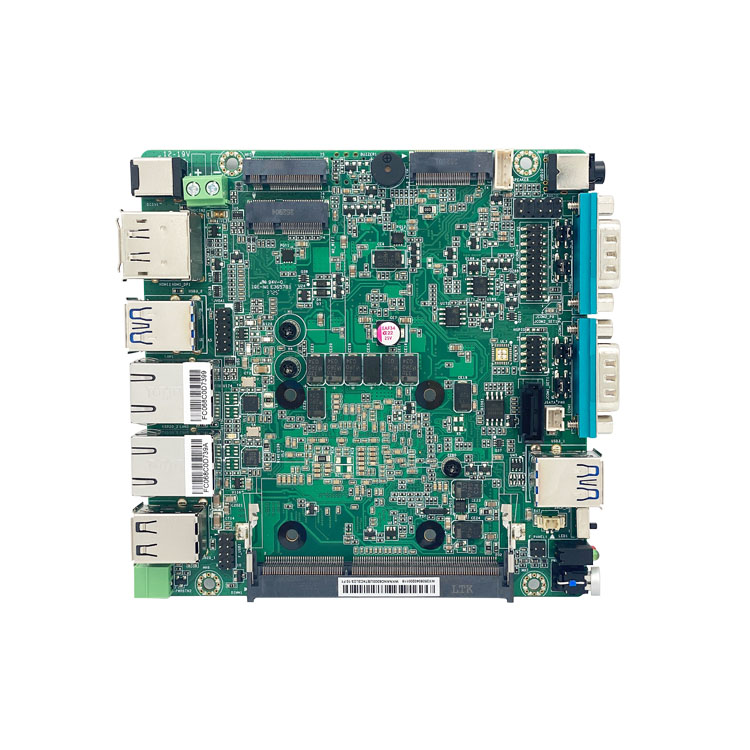

◆Intel® Skylake i5-6300U Processor, dual-core, four-thread, 2.40~3.00GHz, Intel® HD Graphics 520
◆1*SO-DIMM DDR3L 1600 MHz Max16GB
◆Display output: DP, HDMI, VGA
◆Support 1*SATA3.0; 1*M.2 Key M (2280mm, supports SATA3 and PCIe x4 for SSD)
◆Support 1*M.2 Key E (2230mm, supports WiFi+Bluetooth expansion)
◆Support 1*M.2 Key B (3042/52mm, supports 4G/5G expansion)
◆Support 4*USB3.0 ((5Gbit/s)); 4*USB2.0 (480Mb/s)
◆Support 2*Realtek RTL8111 Gigabit Network Card (optional single network)
◆Support 4*COM232 (COM1, COM2 support RS232/485, default RS232)
◆Support one-click system restore, supports shortcut key system backup and restoration
◆DC 12V-19V input power supply
| General | |
| CPU | Intel® Skylake-U Processor, dual-core, quad-threaded, 2.40~3.00GHz |
| Chipset | Intel® SOC |
Display Chip | Intel® HD Graphics 520 |
| Display Output | HDMI、DP、VGA |
| Strong support | Supports synchronous/asynchronous output for four displays |
| USB | 4*USB3.0((5Gbit/s)) 4*USB2.0(480Mb/s ) |
| Memory | 1*SO-DIMM DDR3L 1600MHz Max 16GB |
| sound effect | Built-in audio decoding controller ALC897 + NS4251 (SP1 supports 3W @ 4Ω; 1.7W @ 8Ω max) |
| Network Card | Built-in 2 x Realtek RTL8111 Gigabit network cards (single network option available) |
| storage | 1 * SATA 3.0 interface |
| 1*M.2 Key M (2280mm，Supports SATA3 and PCIe x4 for SSD) | |
| expansion slot | 1 x M.2 Key E (2230mm, supporting WiFi + Bluetooth expansion) |
| 1 * M.2 Key B (3042/52mm, supporting 4G/5G expansion) 1* SIM | |
| I/O chip | IT8786E-I |
| BIOS | AMI BIOS |
| Power Supply | DC 12-19V |
| Environment | Operation: 0 - 60℃; Storage: -15℃ - 75℃ |
| 5% - 95% relative humidity, no condensatio | |
| Motherboard Size | 120mm*120mm |
| Posterior I/O interface | |
| 1* DC interface 1* Dual-layer DP + HDMI interface 2* USB3.0 interfaces 1* LAN1 interface 1* LAN2 interface (Optional: 2* USB2.0 interfaces) 2* USB2.0 interfaces 1* PWRBTN2 (Power switch) 1* GHOST (Key system restore) 1* CLR_CMOS button | |
| Front I/O interface c | |
| 1* PWRBTN1 button 2* LED (1* HDD-LED; 1* POWER-LED) 1* SWCH_ON (Power-on automatic startup switch) 2* USB 3.0 interface 2* DB9 COM (COM1, COM2 support RS232/485, default RS232) 1* AUDIO dual-purpose port | |
| Internal I/O connector | |
| 1* HDCIN2 (2-pin vertical green phoenix terminal) 1* JVGA1 pin 1* F_USB1 pin (expandable to 2*USB2.0) 1* F_PANEL pin 1* SATA1 interface 1* JSATA_PWR pin 1* HGPIO pin 1* HCOM3-4 pin 1* F_AUDIO pin 1* SPEAKER pin 1* CFAN1 pin 1*SIM | |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
