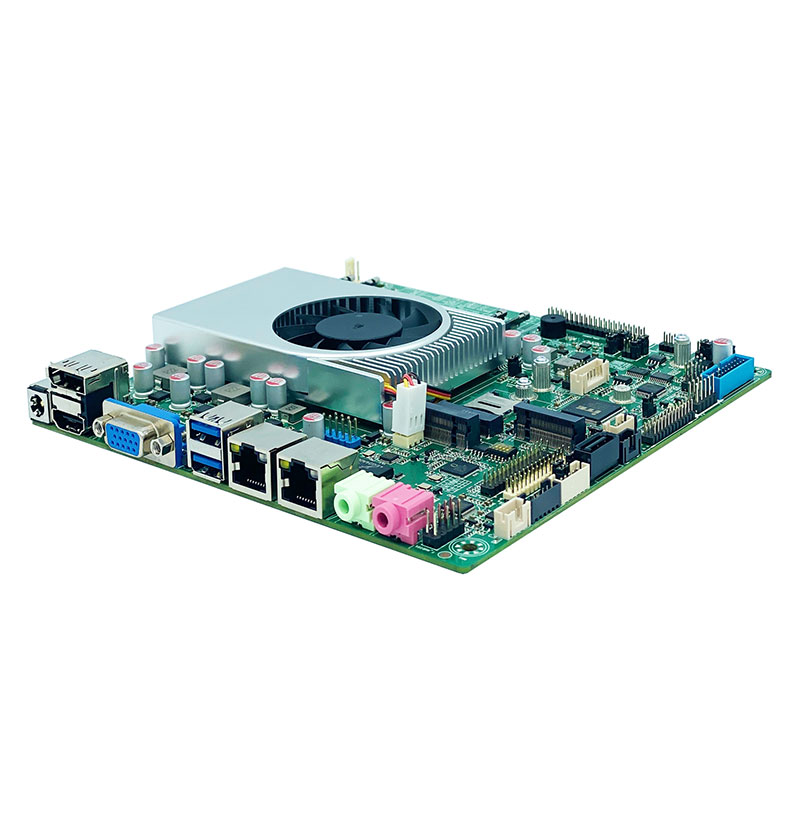

processor：Intel® 10th CoreTM Ice Lake i3/i5/i7 Processor；FCBGA1526
chipset：Intel® SOC
Display: Intel® Iris® Plus Graphics
memory：2*SO-DIMM DDR4 3200MHz Max 64GB

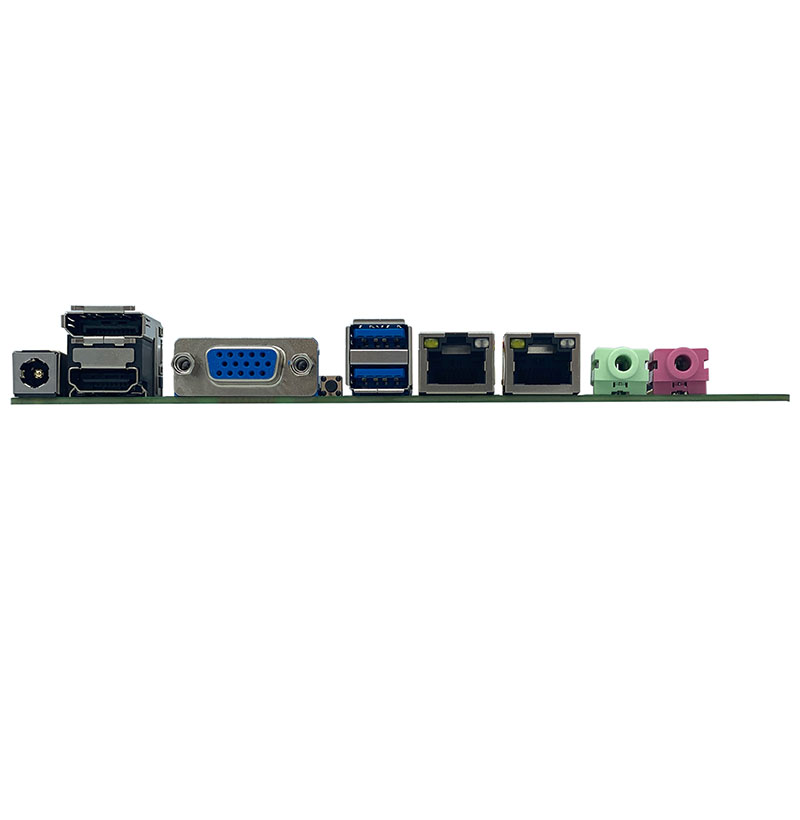

Display output：LVDS/EDP1、EDP2、HDMI/(HDMI+DP)、VGA(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3 and PCIe Gen4 x4 for SSD)
USB:4*USB3.2；6*USB2.0
supports 6*COM232 （COM2 supports RS232/485/422 as options,COM3 supports RS232/485 as options）
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, support WiFi6）
Expansion slot：1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot
| General | |
| CPU | Intel® 10th CoreTM Ice Lake i3/i5/i7 Processor；FCBGA1526 |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 3200MHz Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3 and PCIe Gen4 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, support WiFi6） 1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS232/485/422 as options,COM3 supports RS232/485 as options） |
| USB | 4*USB3.2；6*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*4PIN ATX Header 6*COM232 Header 1*JVGA Header 3*F_USB2.0 Header（Extensible 6*USB2.0) 1*F_AUDIO Header 1*HSPK Header 2*INVT Header 1*SATA3.0 interface 1*HD_PWR Header 1*EDP2 Header 1*LVDS_EDP1 Header 1*HLPT_GPIO Header 1*AUTO_ON Header 1*F_PANEL Header 1*PS/2 Header 1*JME Header 1*JESPI1 Header 1*CPU _FAN Header 1*SYS_FAN Header 1*LCTL1 Header 1*F_USB3.2 Header（Extensible 2*USB3.2） |
| Display | |
| Display Interface | LVDS/EDP1、EDP2、HDMI/(HDMI+DP)、VGA(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
