◆Supports Intel® 12th/13th CoreTM i3/i5/i7 or Celeron® Processor; FCBGA1744;
◆Supports 2*SO-DIMM, DDR5 4800 MHz, up to 64GB
◆Supports dual HDMI, 1*Type-C display, supports three display synchronous/asynchronous output
◆Onboard 2*Intel i226-V 2.5GBE network card
◆Supports 3*USB3.0, 1*Type-C USB 3.0
◆1*M.2 Key E, (2230mm, supports Wifi+Bluetooth, supports WiFi6 and CNVi)
◆1*M.2 Key M, (2280mm, supports SATA3.0&PCIe X4 adaptive)
◆DC 12V~19V input power supply
| processor | Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor | |
| BIOS | AMI BIOS | |
| Support PXE boot, network wake-up, and network wake-up after abnormal power failure, etc | ||
| Memory | capacity | 2 x DDR5 SO-DIMM，4800MHz，Max 64GB |
| storage | port | 1 x M.2 2280 Key-M supporting adaptive SATA 3.0 & PCIe X4 |
| Display on the IO port | Intel® Iris® Xe Graphics | |
| 1 x Type-C | ||
| 2 x HDMI | ||
| Network | wired | 2 x Intel i226-V 2.5GBE network card (On-board RJ45) |
| wireless | 1 x M.2 E Key（2230mm,support Wifi+Bluetooth, suppt WiFi6 and CNVi ） | |

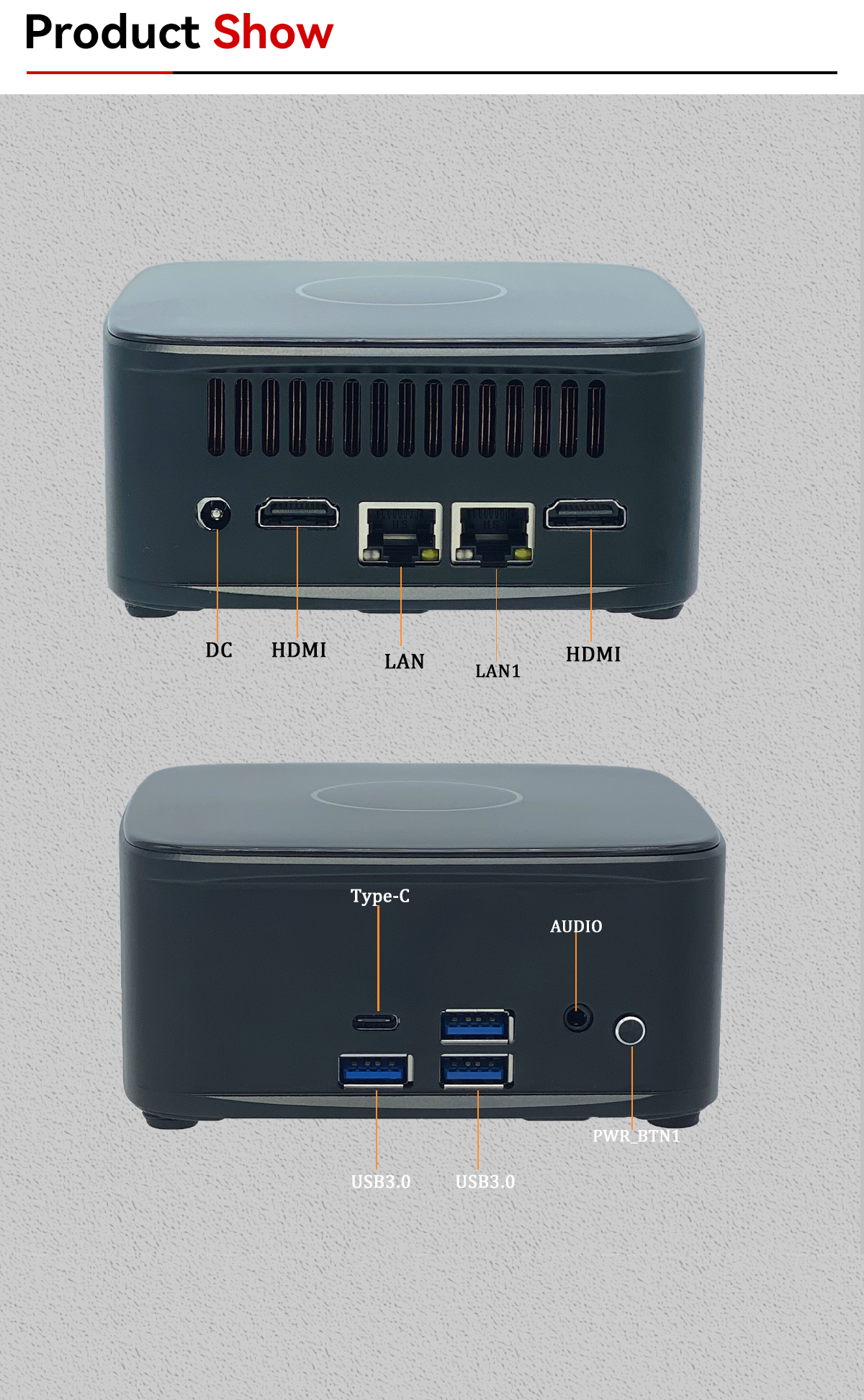

| Post-processed IO | Net opening | 2 x RJ45 |
| Display | 2 x HDMI display port | |
| DC | 1 x DC power outlet | |
| Front-end IO | Display | 1 x Type-C display |
| USB | 3 x USB3.0 port 1 x Type-C USB3.0 | |
| AUDIO | 1 x AUDIO Port | |
| Button | 1 x Power Button | |
| power supply | import | DC 12~19V Input power supply |
| watchdog | Restart the system after a failure, with an interval ranging from 1 to 65535~seconds | |
| Dimension | 186 * 140 * 66 mm | |
| OS | versions | Windows 10/11 32bit/64bit/Linux |
| work environment | temperature | Working temperature: 0°C ~ 60°C Storage temperature: -20~75°C |
| humidity | 0% - 90% No condensation | |
