processor：Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor
chipset：Intel® H310C
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 2400/2666MHz Max 32GB

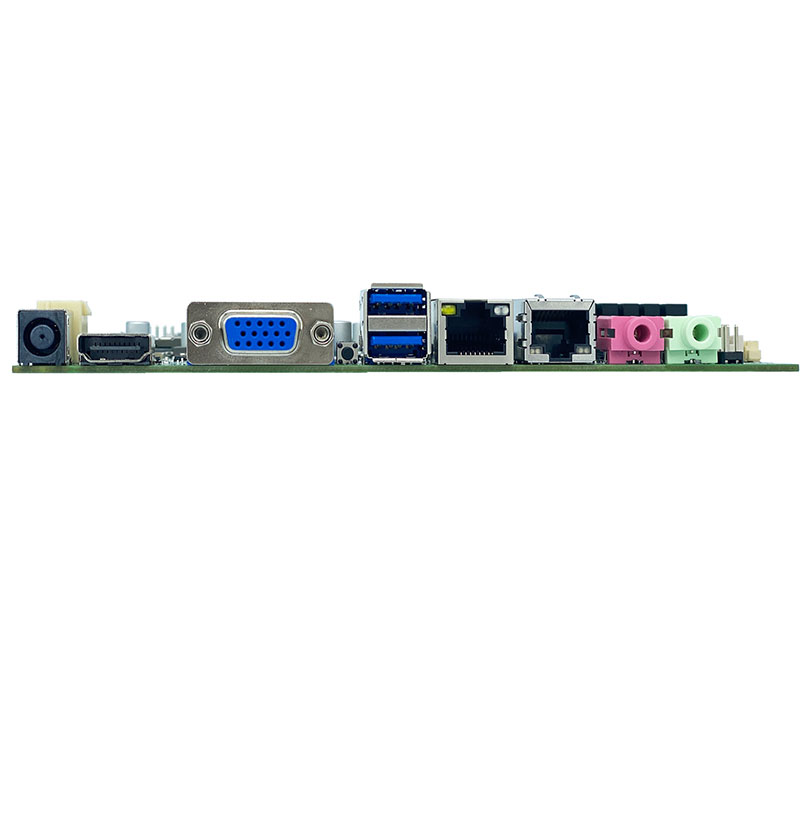

Display output：VGA、LVDS、HDMI (Support 2 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA or PCIe SSD)
USB:2*USB3.0；6/7*USB2.0
supports 8*COM232 （COM2 supports RS232/RS485 selection）
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （For WIFI+Bluetooth Card） 1*SIM card slot
| General | |
| CPU | Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 2400/2666MHz Max 32GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA or PCIe SSD) |
| Expansion Interface | 1*Mini_PCIe （For WIFI+Bluetooth Card） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/Windows 8/Windows 8.1/Windows 10/Linux（According to the CPU decision) |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 8*COM232 （COM2 supports RS232/RS485 selection） |
| USB | 2*USB 3.0, 6/7*USB 2.0 |
| Audio | Onboard audio decoding controller ALC269 (SPK support 2.2 W @ 4 Ω Max) |
| Others | 1*F-AUDIO Header 1*SPEAKER Header 1*DEBUG Header 1*SATA interface 1*SATA_PWR Header 1*JME Header 3*F_USB2.0 Header（Extensible 6*USB2.0） 1*VGA Header 1*2PIN Header 8*COM Header 1*F_PANEL Header 1*LVDS Header 1*INVERT Header 1*BKCL Header 1*SFAN Header 1*CFAN Header 1*AT is powered on automatically Header 1*HGPIO Header |
| Display | |
| Display Interface | VGA、LVDS、HDMI (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
