◆Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor
◆Supports HDMI 2.0 + DP 1.4 + Type-C + HDMI 2.0 (OPS end) display output
◆Supports HDMI 2.0b, maximum support 4K @ 60FPS for OPS interface
◆Supports 4*USB 3.2 (10Gbit/s) + 1*Type-C USB (10Gbit/s)
◆Supports DDR4 dual-channel memory, maximum 64G at 3200MHz
◆Supports M.2 Key M (2280mm, supports SATA3 and PCIe Gen4 x4) for SSD)
◆ 1 * SATA 7+15-pin, capable of supporting 2.5-inch hard drive installation
◆Supports M.2 Key E (2230mm, supporting Wifi + Bluetooth module expansion, supporting CNVi)
◆Unique design, supports OPS interface for plug-and-play without damage
◆DC 12V - 19V power supply; watchdog function, hardware monitoring, power-on self-starting
| Processor | Supports Intel® 12th/13th CoreTM i3/i5/i7 or Celeron® Processor | |
| BIOS | AMI BIOS with features such as write protection, diskless boot, network wake-up, power-on boot, scheduled boot, watchdog, remote power on/off, intelligent device recognition, and support for TPM2.0 | |
| Memory | Capacity | 2 x SO-DIMM，DDR4 3200 MHz Max64GB |
| Storage | Port | 1 x SATA 7+15pin, supporting 2.5-inch hard disk installation |
| 1 x M.2 Key M (2280mm, supporting SATA3 and PCIe Gen4 x4 for SSD) | ||
| IO port display | Intel® Iris® Xe Graphics | |
HDMI: The display resolution can reach 4096x2304@60Hz. DP: The display resolution can reach 4096x2304@60Hz. | ||
| 1 x Type-c display | ||
| OPS display screen | The HDMI 2.0 display resolution can reach 4096x2304 at 60Hz. | |
| network | wired | 1 x RTL8111H Gigabit Ethernet (board-mounted RJ45) (Optional: Intel i226-V network card) |
| wireless | 1 x M.2 E Key (For WIFI + Bluetooth Card, supporting CNVi protocol) | |

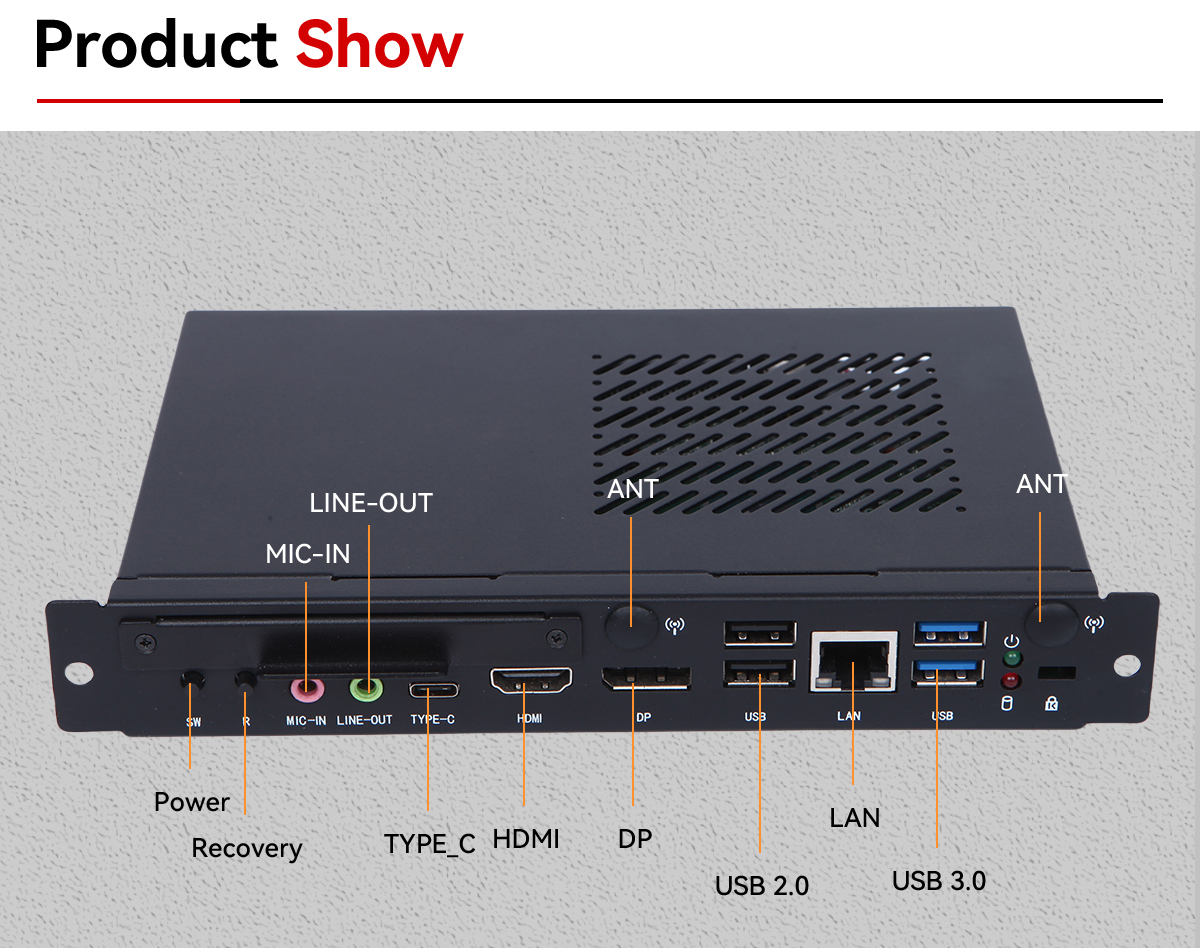

| I/O | USB | 4 x USB3.2(10Gbit/s) 1 x Type-C USB (10Gbit/s) |
| LAN | 1 x RJ45 | |

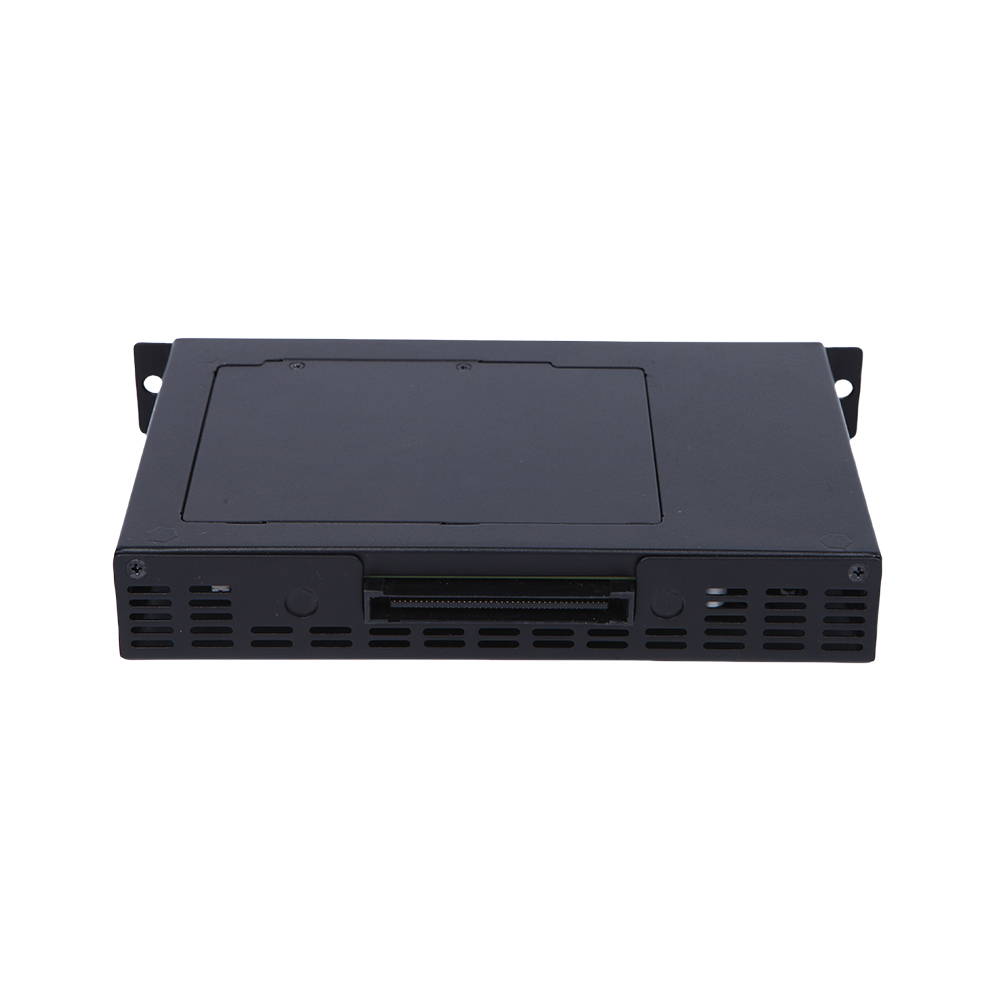

| socket | 1 x DC power socket 1 x OPS80pin | |
| LED | 1 x POWER LED 1 x HDD LED | |
| Button | 1 x Power Button | |
| 1 x RESET (short press to restart long press to CLEAR-CMOS) | ||
| audio | 1 x LINE-OUT &1 x MIC-IN | |
| power supply | import | DC 12~19V |
| watchdog | function | Restart the system after a crash |
| interval | 1 ~ 65535sec | |

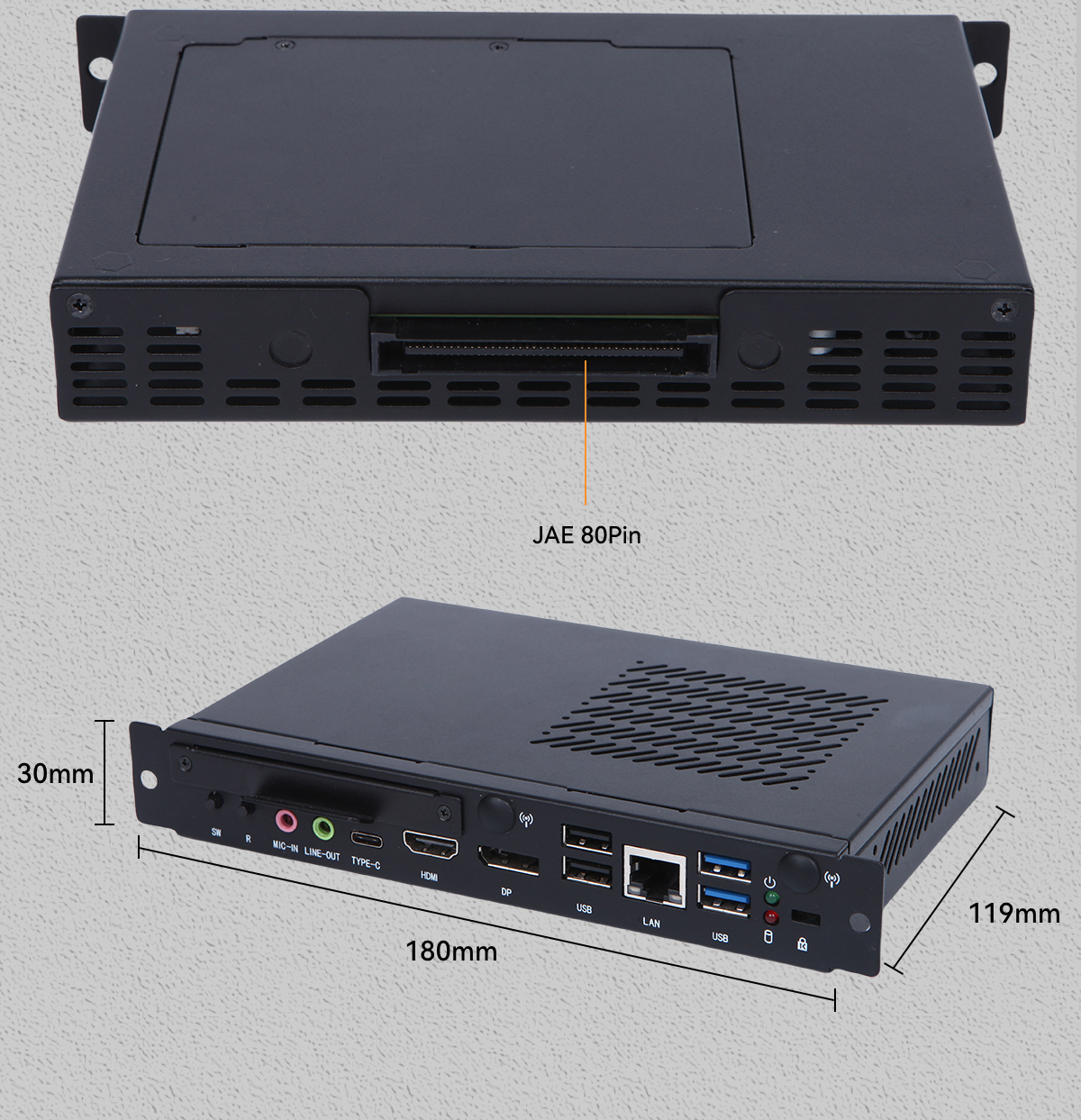

| Mini Pc Size | 201 (L) x 119 (W) x 30(H)mm | |
| operating system | versions | windows10 / windows11/Linux |
| work | temperature | Working temperature: 0°C ~ 60°C Storage temperature: -15 ~ 75°C |
| environment | humidity | 0% - 90% No condensation |
