MK-T01

Color

Black

Processor system

Built-in Intel Core SkyLake-U/KabyLake-U/KabyLake R-U series processors, TDP 15W

EFI BIOS

Memory

2 x DDR4 SO-DIMM, maximum total capacity of 64GB

Storage

1 x M.2 2280 (PCIe 2X/SATA3.0 adaptive)

Display

1 x HDMI,1080P

1 x VGA,1080P

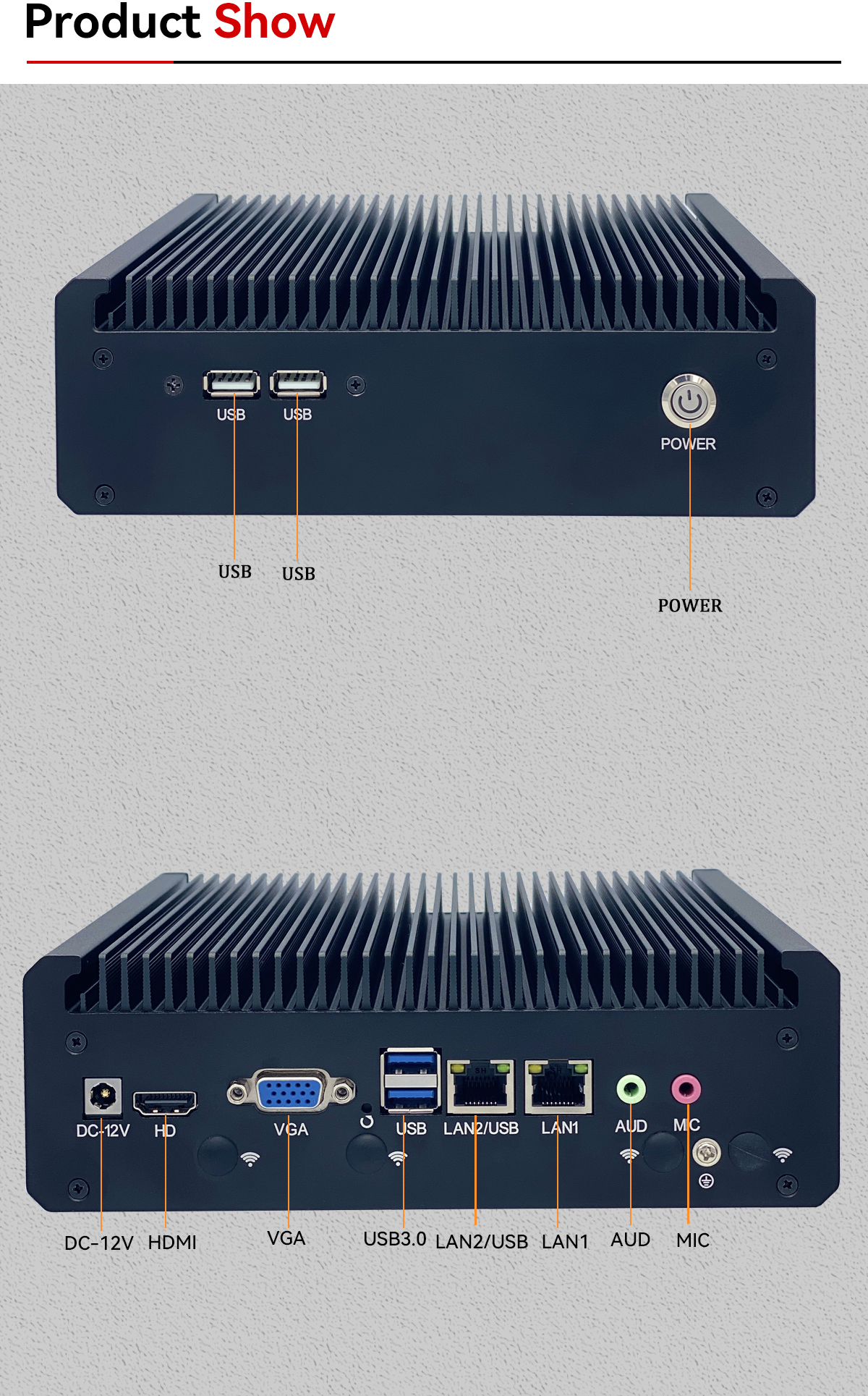

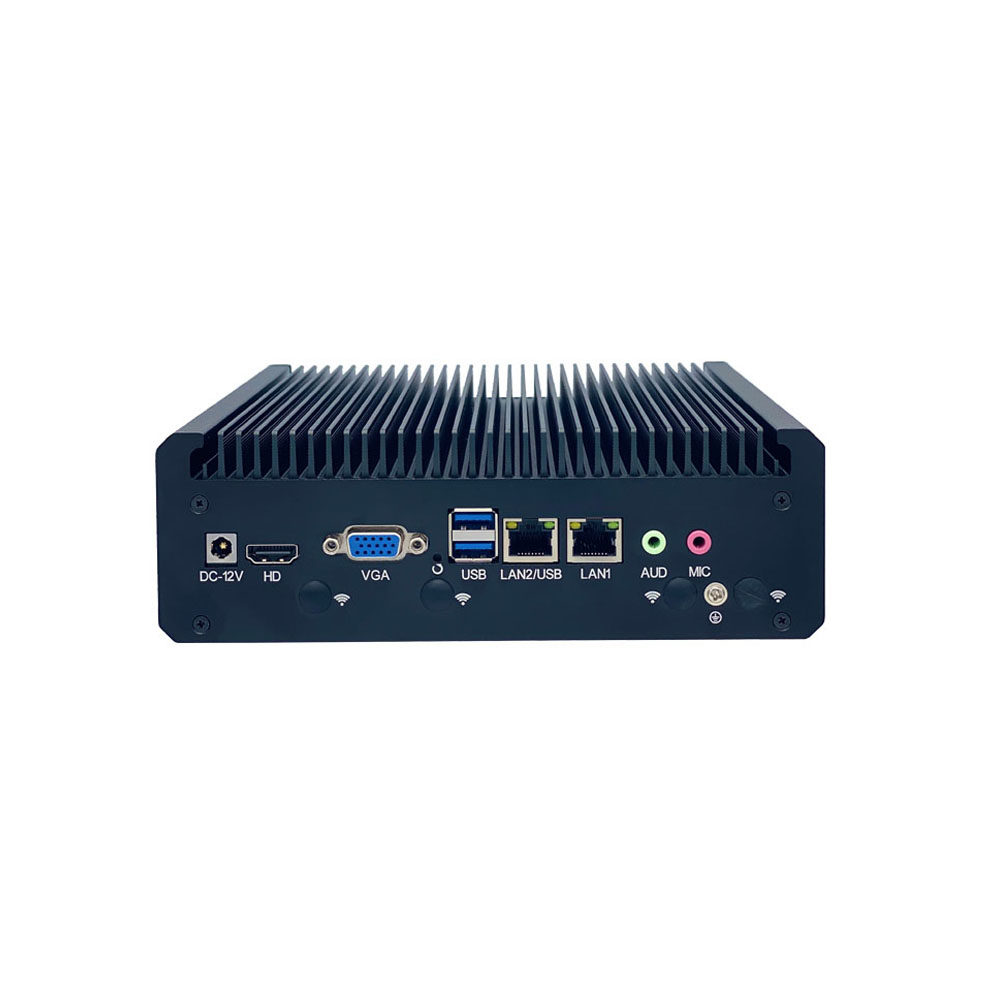

External interfaces

DC JACK, HDMI, VGA, 4 x USB (6 x USB when using a single network)

4 x antenna holes, Audio, power-on button, LED (PWR, HDD)

RJ45, single or dual network options available

Built-in functions

1 x MiniPCIe (PCIe + USB2.0 protocol, supports WIFI/BT/4G modules)

Power input

DC 12V, 60W or more

Operating environment

Operating temperature: 0℃ ~ +60℃; Operating humidity: 5% ~ 90%

Storage temperature: -15℃ ~ +75℃; Storage humidity: 5% ~ 90%

Operating system support

Windows10,Windows11,Linux

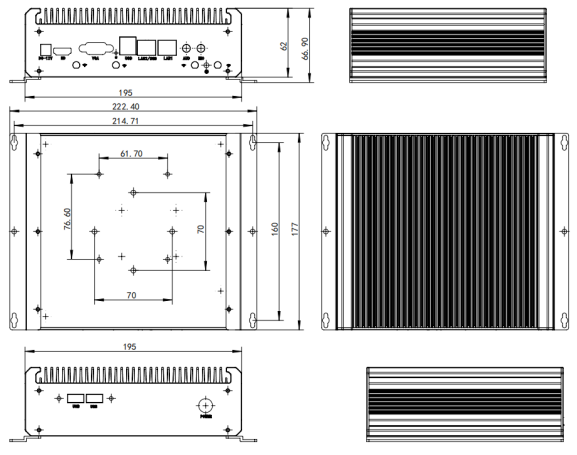

Body size

195x177x62 mm

Packaging size

Single unit packaging size: 270x228x120 mm

Large outer box size

620x280x240 mm for 5 units

Weight

Gross weight of a single unit is approximately 1600g (including packaging, excluding adapter)

Fixing holes

70x70mm spacing VESA holes (without VESA bracket)

Optional

Left and right ear straps
