processor：Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor；
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR5 4800MHz Max 64GB
Display output：2*HDMI、1*Type-C (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3.0&PCIe X4 adaptive)
USB:3*USB3.0；2/4*USB2.0；1*Type-C USB3.0
On board 1/2 * Intel i226-V 2.5GBE network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, supports CNVI and WiFi6）
| General | |
| CPU | Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor； |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR5 4800MHz Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3.0&PCIe X4 adaptive) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, supports CNVI and WiFi6） |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Intel i226-V 2.5GBE Controller，RJ45 |

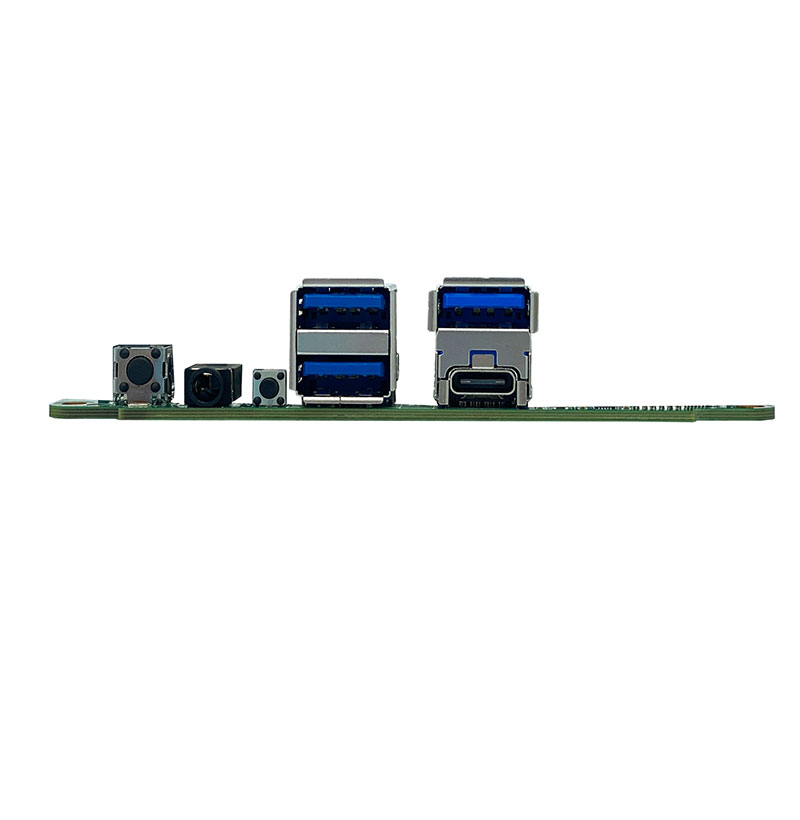

| USB | 3*USB3.0；2/4*USB2.0；1*Type-C USB3.0 |
| Audio | Onboard audio decoding controller ALC897 |
| Others | 1*C_FAN Header 1*F_USB1 Header （Extensible 2*USB2.0） 1*SATA interface |
| Display | |

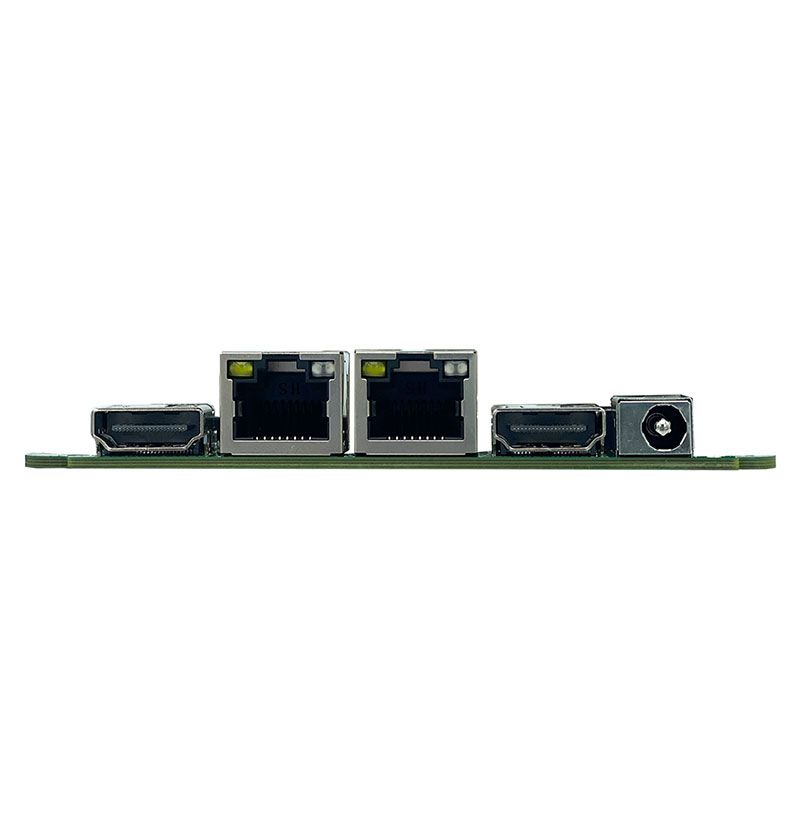

| Display Interface | 2*HDMI、1*Type-C (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 100mmX106mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
