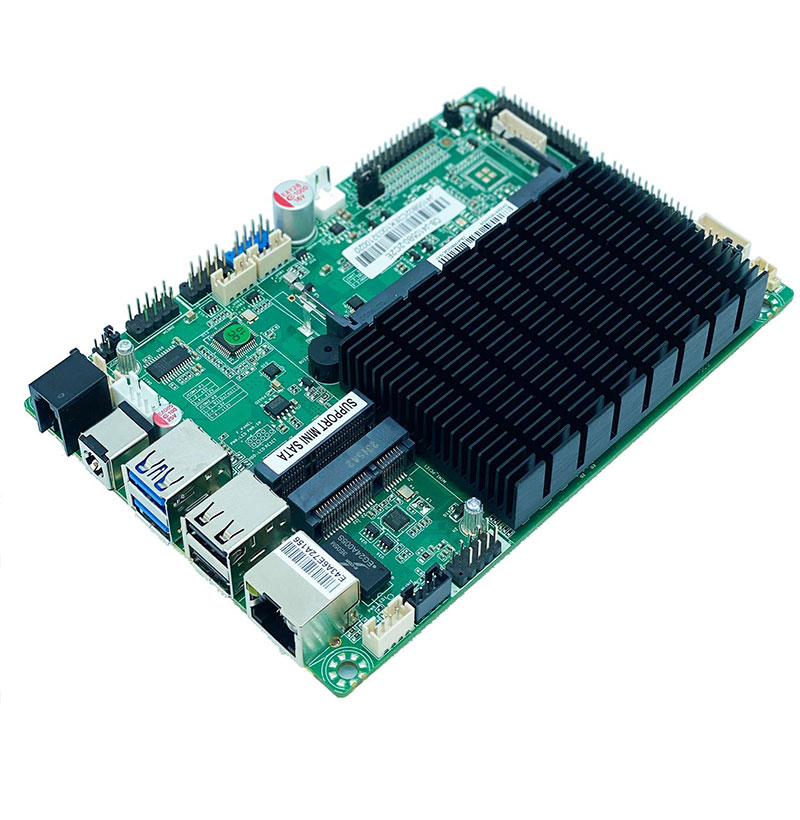

processor：Intel® Gemini lake*&Gemini Lake R (J4125/N4000) Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 2400 MT/s；Max 8GB
Display output：LVDS1/EDP1、LVDS2/EDP2 (Support 2 display synchronous/asynchronous output)
storage：1*Mini sata (Supports SATA SSD expansion modules,Debug support)
USB:2*USB3.0；8*USB2.0
supports 2*COM232
On board 1* RTL8111 gigabit network card
Expansion slot：1*Mini PCIe (Supports Wifi+Bluetooth extension module )
| General | |
| CPU | Intel® Gemini lake*&Gemini Lake R (J4125/N4000) Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 2400 MT/s；Max 8GB |
| Storage | 1*Mini sata (Supports SATA SSD expansion modules,Debug support) |
| Expansion Interface | 1*Mini PCIe (Supports Wifi+Bluetooth extension module ) |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |

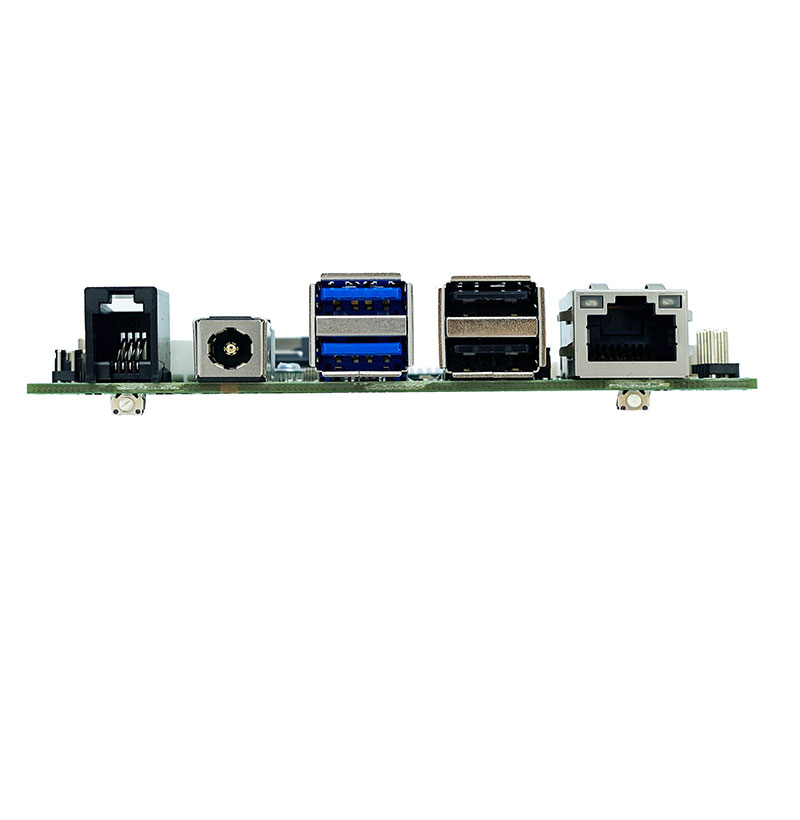

| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 2*COM232 |
| USB | 2*USB 3.0, 8*USB 2.0 |
| Audio | Onboard audio decoding controller ALC269 (SPK support 2.2 W @ 4 Ω Max) |
| Others | 1*HDCIN Header 2*COM Header 4*F_USB2.0 Header（Extensible 6*USB2.0） 1*LPT_PWR Header 1*HLPT Header 2*INVT Header 2*LVDS_EDP Header 1*CPU_FAN Header 1*HLOUT Header 1*HSPK Header 1*F_PANEL Header 1*JATX Header 1*JME Header |
| Display | |
| Display Interface | LVDS1/EDP1、LVDS2/EDP2 (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 102mmX148mm |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
