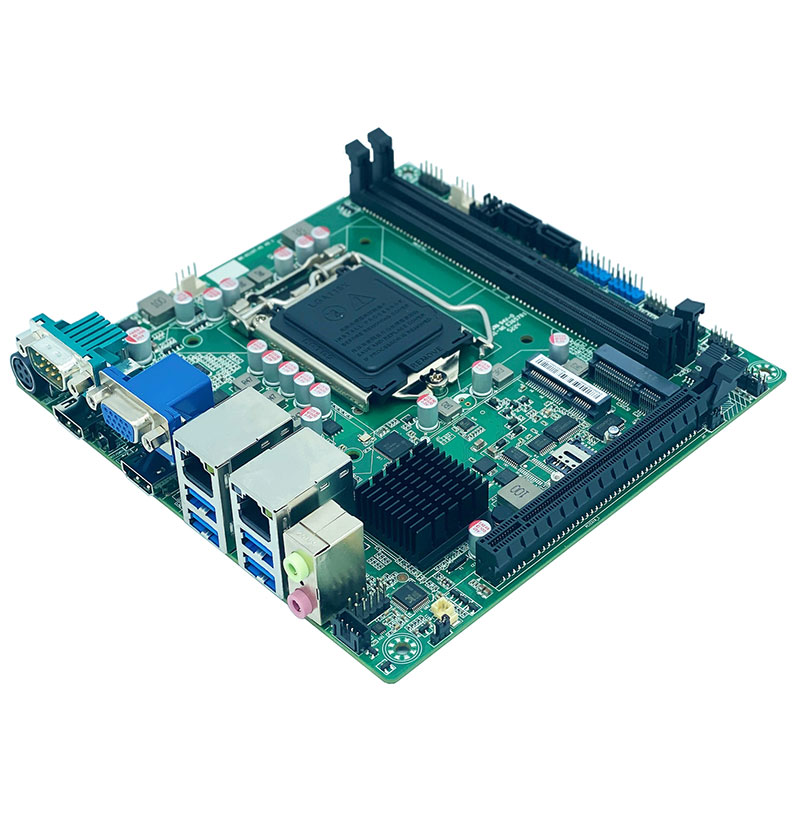

processor：Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor
chipset：Intel® H110C
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 Max 64GB
Display output：VGA、2*HDMI (Support 2 display synchronous/asynchronous output)
storage：2*SATA3.0；1*mSATA
USB:4*USB3.0；4*USB2.0
supports 4*COM232
On board 2 * Intel I210/I211-AT/1GbE network card
Expansion slot：1*Mini_PCIe （For WIFI/BT, 4G modules） 1*SIM card slot
| General | |
| CPU | Intel® i3/i5/i7 6~9th Desktop 65W,LGA1151 Processor |
| Chipset | Intel® H110C |
| Memory | 2*SO-DIMM DDR4 2400/2666MHz Max 32GB |
| Storage | 1*SATA3.0 1*mSATA |
| Expansion Interface | 1*Mini_PCIe （For WIFI/BT, 4G modules） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/Windows 10/Windows 11/Linux（According to the CPU decision) |

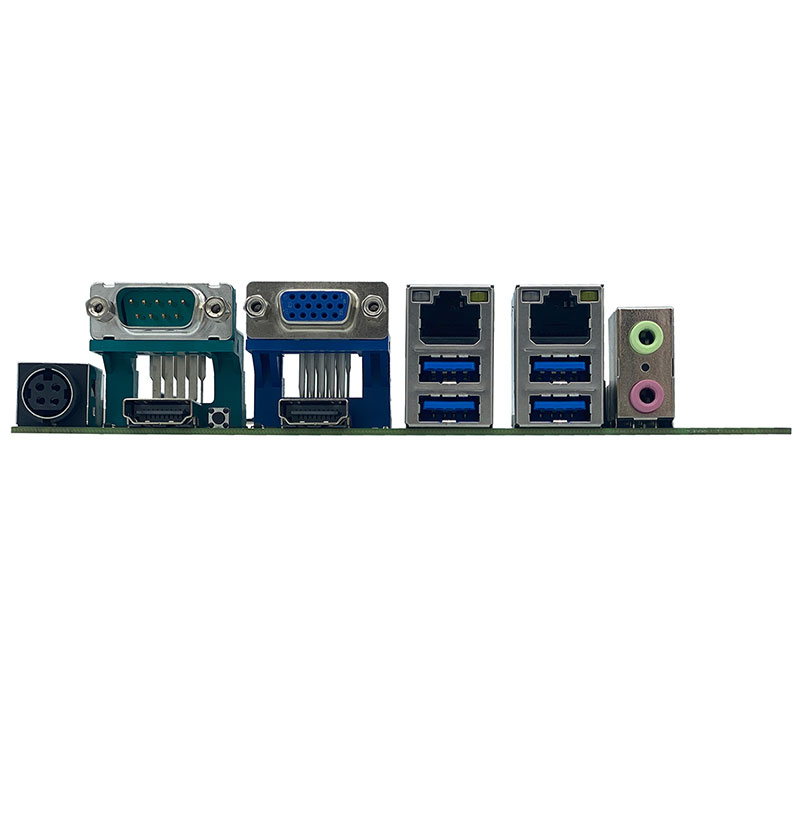

| I/O Interface | |
| Ethernet | 2*Intel I210/I211-AT/1GbE Ethernet Controller，RJ45 |
| Serial | 4*COM232 |
| USB | 4*USB 3.0, 4*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*2PIN Header 4*COM Header 1*F-AUDIO Header 1*SPEAKER Header 2*F_USB2.0 Header（Extensible 4*USB2.0） 2*SATA interface 2*SATA_PWR Header 1*JME Header 1*F_PANEL Header 1*SFAN Header 1*CFAN Header 1*AT is powered on automatically Header |
| Display | |
| Display Interface | VGA、2*HDMI (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V-24V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
