processor：Intel® 4/5th Generation Intel ® Core™ U-series Processor
chipset：Intel® SOC
Display: Intel® HD Graphics
memory：2*SO-DIMM DDR3L 1600 /1333/1066MHZ Max 16GB

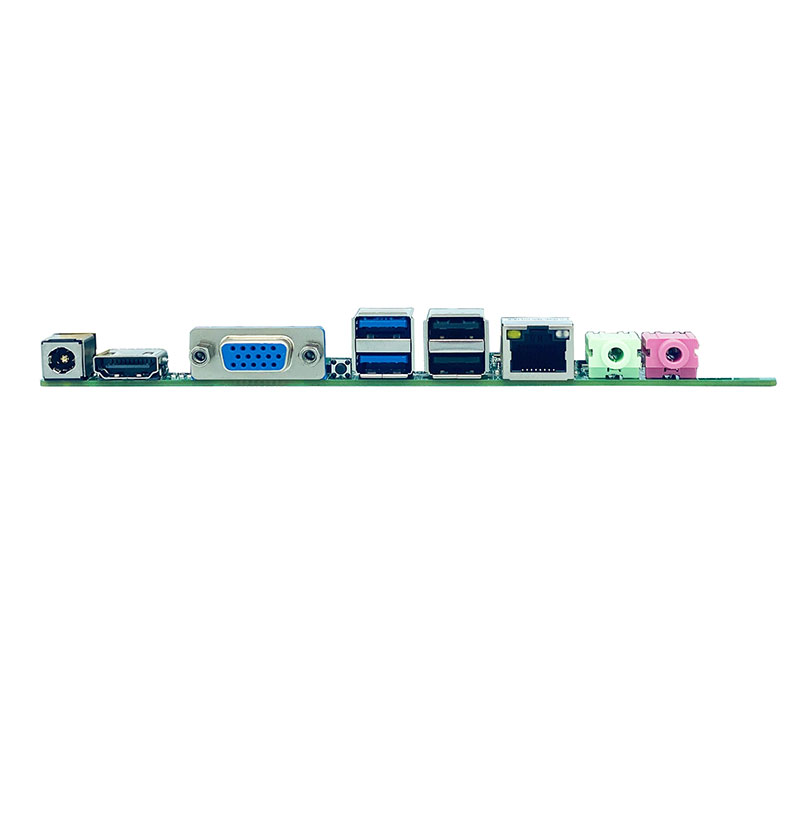

Display output：VGA/EPD2、HDMI、LVDS1/EDP1(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*mSATA
USB:2*USB3.0；6/8*USB2.0
supports 6*COM232 （COM2 supports RS485 selection）
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （for 4G/WIFI ） 1*SIM card slot
| General | |
| CPU | Intel® 4/5th Generation Intel ® Core™ U-series Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR3L 1600 /1333/1066MHZ Max 16GB |
| Storage | 1*SATA3.0 1*mSATA |
| Expansion Interface | 1*Mini_PCIe （for 4G/WIFI ） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS232/485 as an option） |
| USB | 2*USB 3.0, 6/8*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*4PIN ATX Header 1*JHDMI Header 1*JVGA Header 6*COM232 Header 1*F-AUDIO Header 1*SPEAKER Header 1*BKCL1 Header 1*INVT Header 1*LVDS_EDP1 Header 1*SATA interface 1*SATA_PWR Header 3*F-USB2.0 Header（Extensible 6*USB2.0） 1*PRINT Header 1*F-PANEL Header 1*PS/2 Header 1*GPIO Header 2*FAN Header 1*JME Header 1*AUTO_ON Header |
| Display | |
| Display Interface | VGA/EPD2、HDMI、LVDS1/EDP1(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
