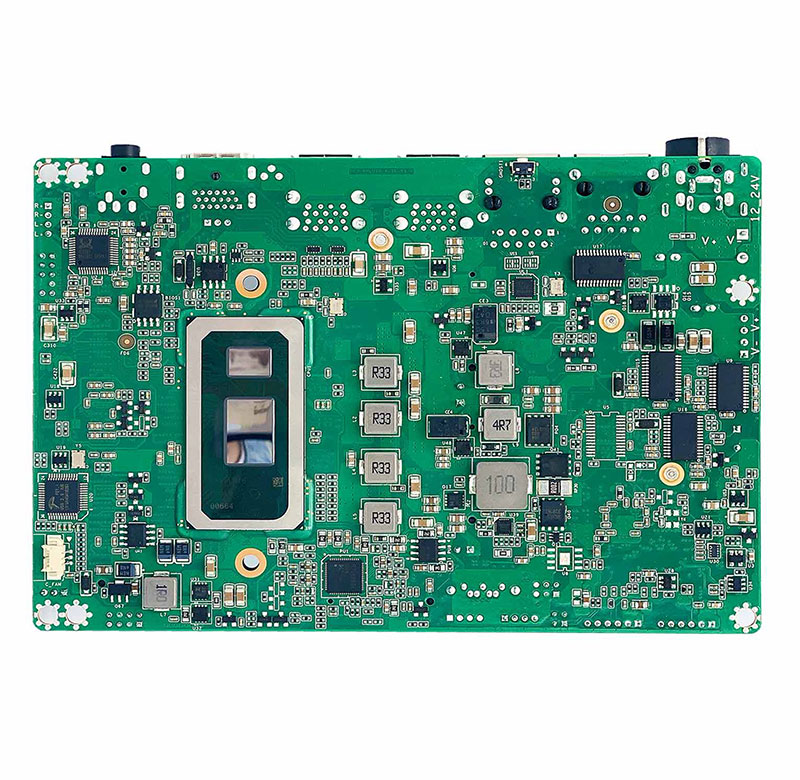

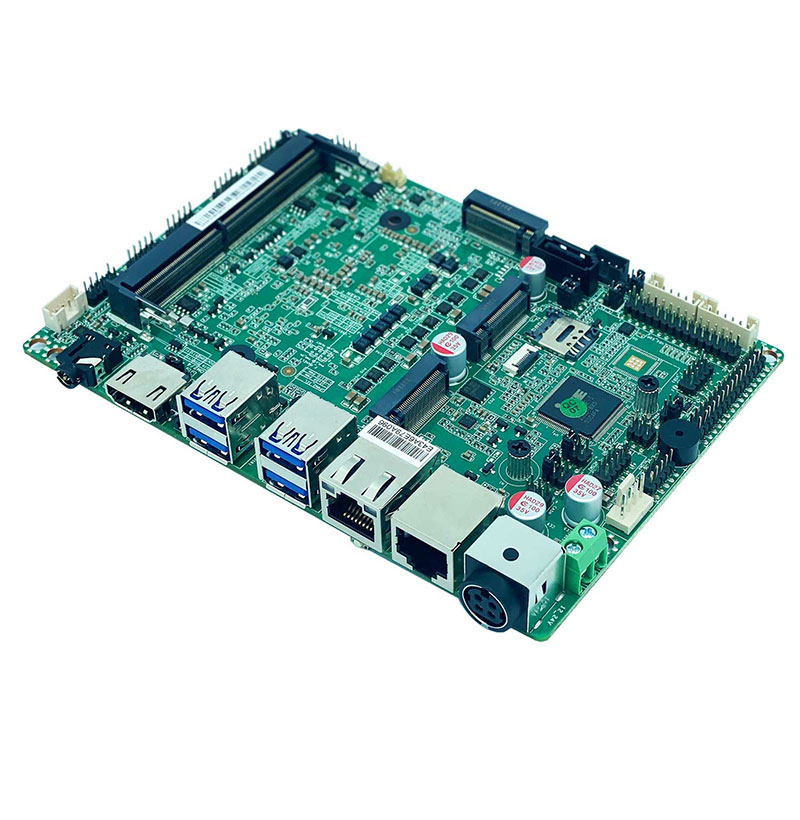

processor：Intel® 8/10th Generation Intel ® Core™ U-series Wiskeylake-U and Coffeelake-U 15~28W cpu，FCBGA1528
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 2400/2666MHz Max 64GB
Display output：LVDS1/EDP1、EDP2、HDMI (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports PCIex4 and SATA3 for SSD)
USB:4*USB3.1；6*USB2.0
supports 4*COM232
On board 1*RTL8111 gigabit network card
Expansion slot：1*M.2 Key A (Supports PCIe x1 and USB 2.0 for Wireless+Bluetooth)
Expansion slot：1*M.2 Key B （Supports SATA3 and USB for SSD or 4G） 1*SIM card slot
| General | |
| CPU | Intel® 8/10th Generation Intel ® Core™ U-series Wiskeylake-U and Coffeelake-U 15~28W cpu，FCBGA1528 |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 2400/2666MHz Max 16GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports PCIex4 and SATA3 for SSD) |
| Expansion Interface | 1*M.2 Key A (Supports PCIe x1 and USB 2.0 for Wireless+Bluetooth) 1*M.2 Key B （Supports SATA3 and USB for SSD or 4G） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |

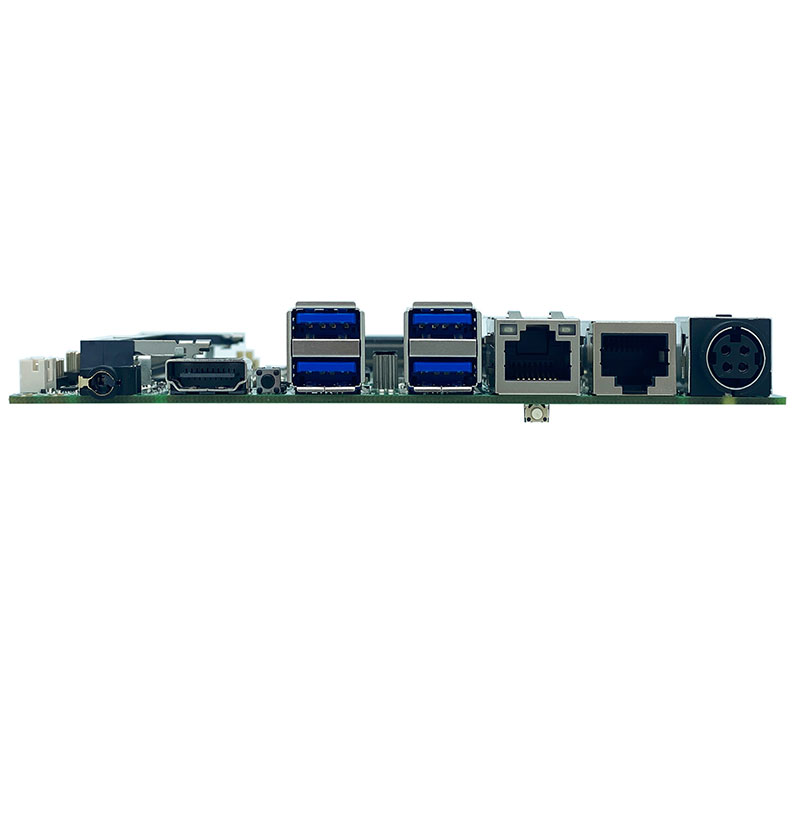

| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 4*COM232 |
| USB | 4*USB3.1；6*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*2PIN Header 1*LPT_PWR Header 3*COM Header 3*F_USB2.0 Header（Expandable 6*USB2.0） 1*CASH Header（GPIO cash box, with detection function 12V/24V, determined by the adapter） 1*LVDS_EDP1 Header 1*EDP2 Header 2*INVT1 Header 1*SATA Header 1*SATA_PWR Header 1*FAN Header 1*F_PANEL Header 1*JATX_JPWM_SEL Header 1*JPS1 Header 1*HGPIO Header 1*SPEAKER Header 1*F-AUDIO Header |
| Display | |
| Display Interface | LVDS1/EDP1、EDP2、HDMI (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 102mmX146mm |
| Power Input | DC 12V-24V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |
Embedded motherboard is generally understood as the CPU board embedded in the device for contro...
Both industrial control computers and computers belong to the category of computers, and their m...
X86 embedded motherboard is a type of embedded motherboard, characterized by its small size and...
